Removal Procedure

  1. Lower the window to the full down position.
  2. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement .

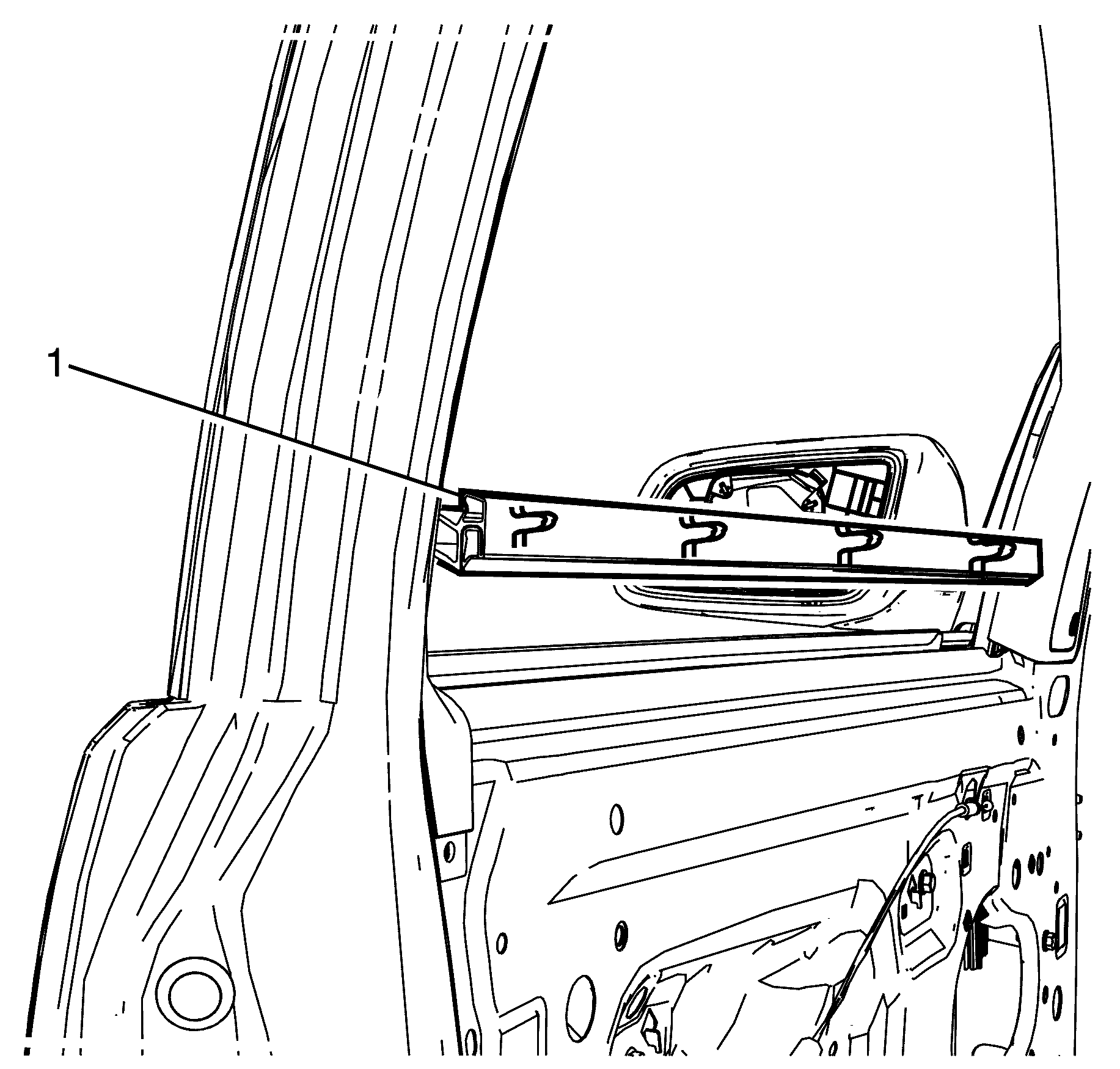

    3. Fig 1: Identifying Window Inner Belt Sealing Strip
    GM1940049Courtesy of GENERAL MOTORS CORP.
    IMPORTANT:

    Pull upward to release the window inner sealing strip (1).

  3. Remove the window inner sealing strip (1).
