Installation Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Rear Washer Pump
    GM792244Courtesy of GENERAL MOTORS CORP.
  1. Position the seal to the washer solvent container, pressing in until fully seated.
  2. Position the rear washer pump to the washer solvent container, pressing in until fully seated.

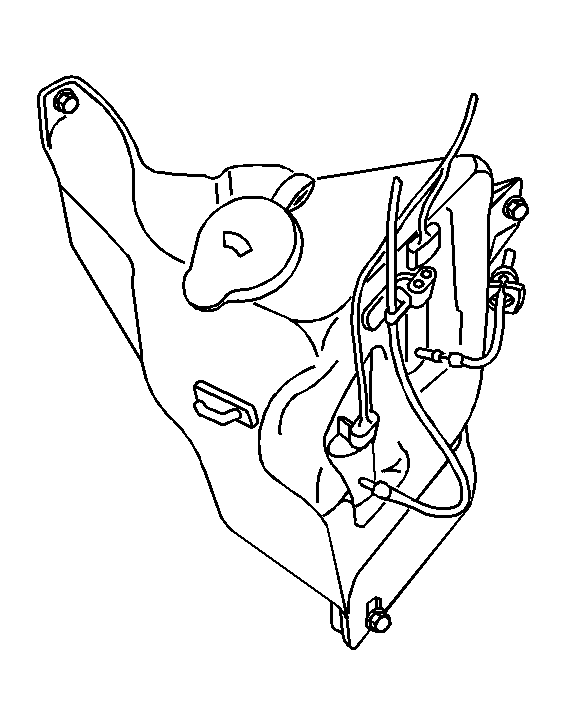

    3. Fig 2: View Of Rear Washer Pump Assembly
    GM792246Courtesy of GENERAL MOTORS CORP.
  3. Connect the rear washer pump hose.
  4. Connect the rear washer pump electrical connector.
  5. Fill the washer solvent container with washer solvent.
