Evaporative Emission Canister Vent Rear Pipe Replacement

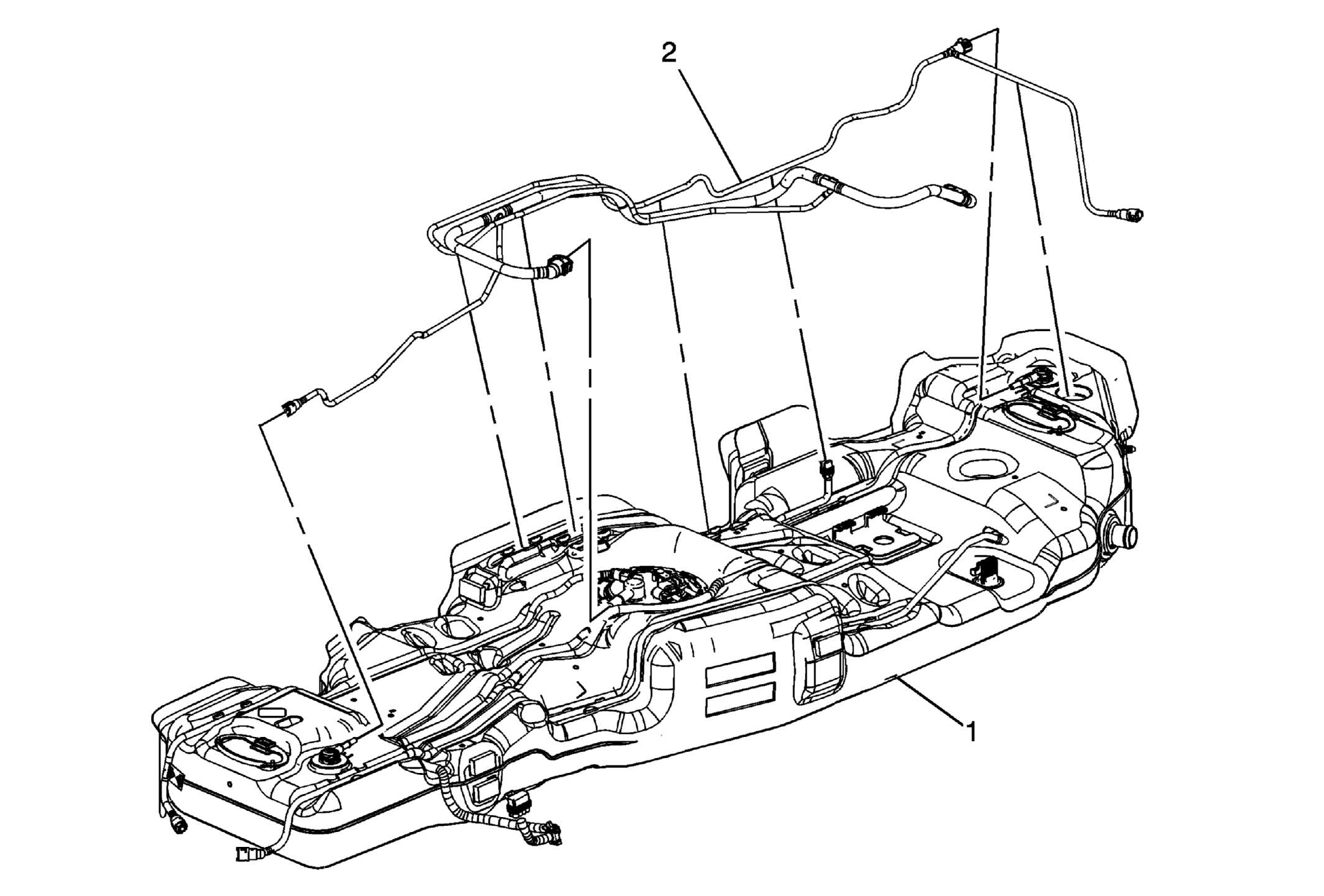

Fig 1: View Of Evaporative Emission Canister Vent Rear Pipe
GM1860381Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the EVAP canister. Refer to Evaporative Emission Canister Replacement .
  2. Remove the foam pad insulators.
1 Fuel Tank
2 Evaporative Emission Canister Vent Rear Pipe

Procedure

  1. Disconnect the quick connect fitting from the fuel tank module. Refer to Plastic Collar Quick Connect Fitting Service .
  2. Disconnect the quick connect fittings from the rollover valves. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Disengage from the tank retaining features.
