Instrument Cluster Replacement (Traverse)

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

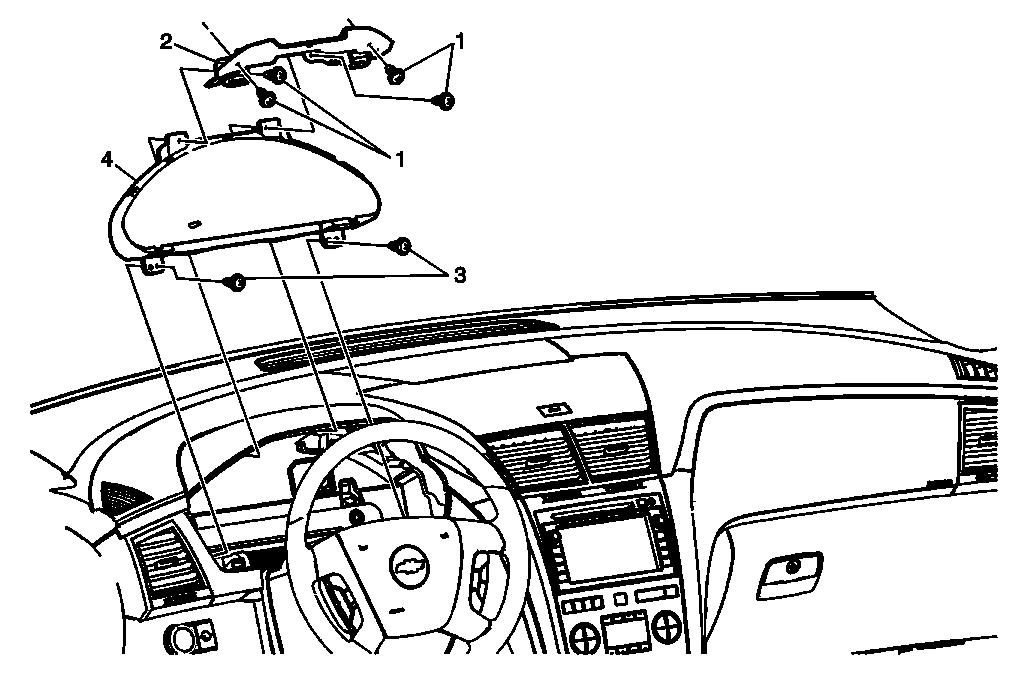

Fig 1: View Of Instrument Cluster (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement (Traverse) .
1	Instrument Panel Cluster Trim Plate Spacer Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Spacer
3	Instrument Panel Cluster Assembly Screw (Qty: 2) Tighten: 2.5 N.m (22 lb in)
4	Instrument Panel Cluster Assembly Procedure Disconnect the electrical connections. After replacing the instrument panel cluster, remove the instrument panel cluster fuse for a few seconds and then install the fuse. Refer to Control Module References for programming and setup information
