Impact Sensor




Component Connector End Views

Inflatable Restraint Front End Sensor - Left (C98)






Inflatable Restraint Front End Sensor - Right (C98)






Inflatable Restraint Side Impact Sensor (SIS) - Left (AJ7 with C98)

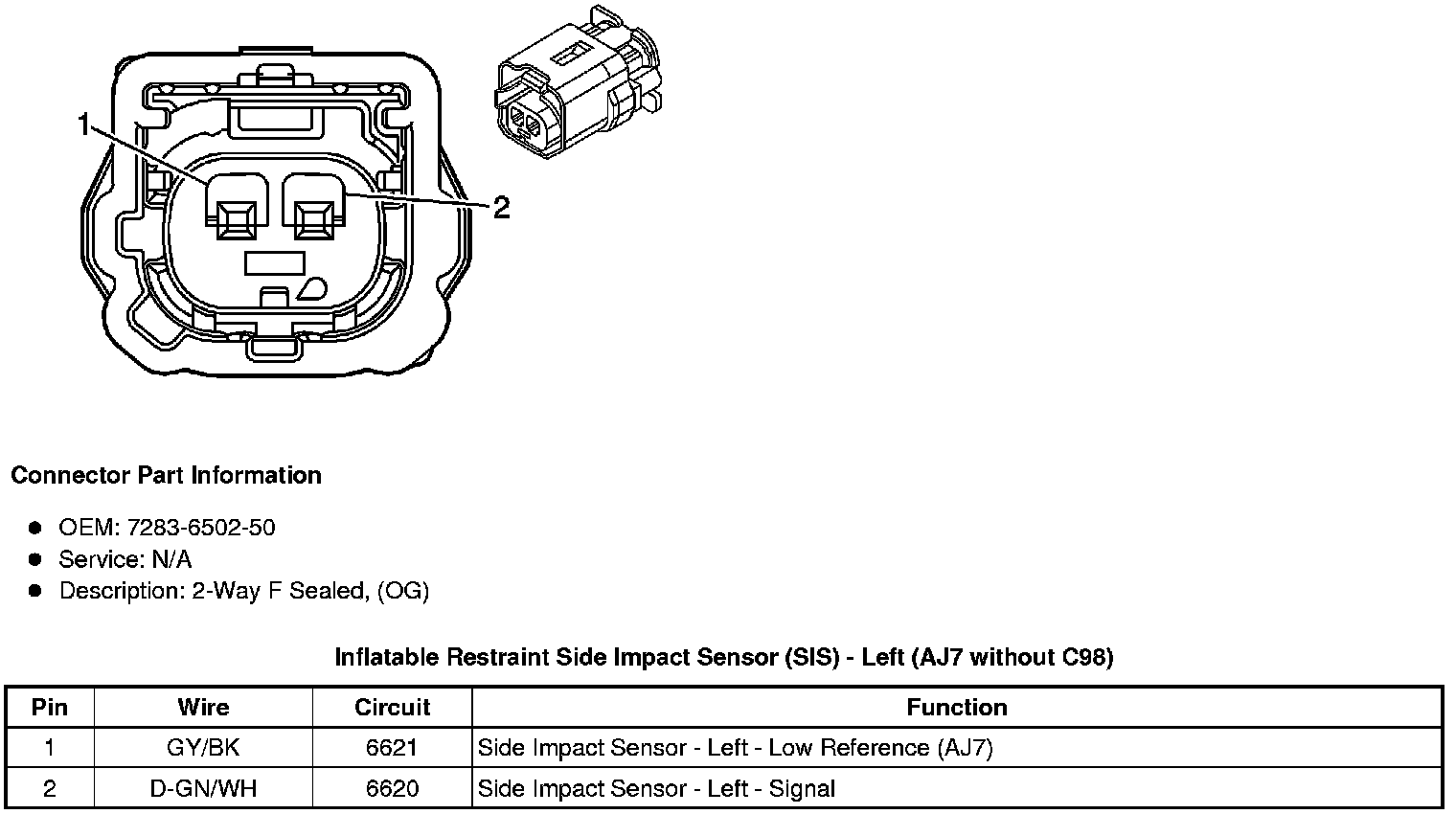

Inflatable Restraint Side Impact Sensor (SIS) - Left (AJ7 without C98)






Inflatable Restraint Side Impact Sensor (SIS) - Right (AJ7 with C98)

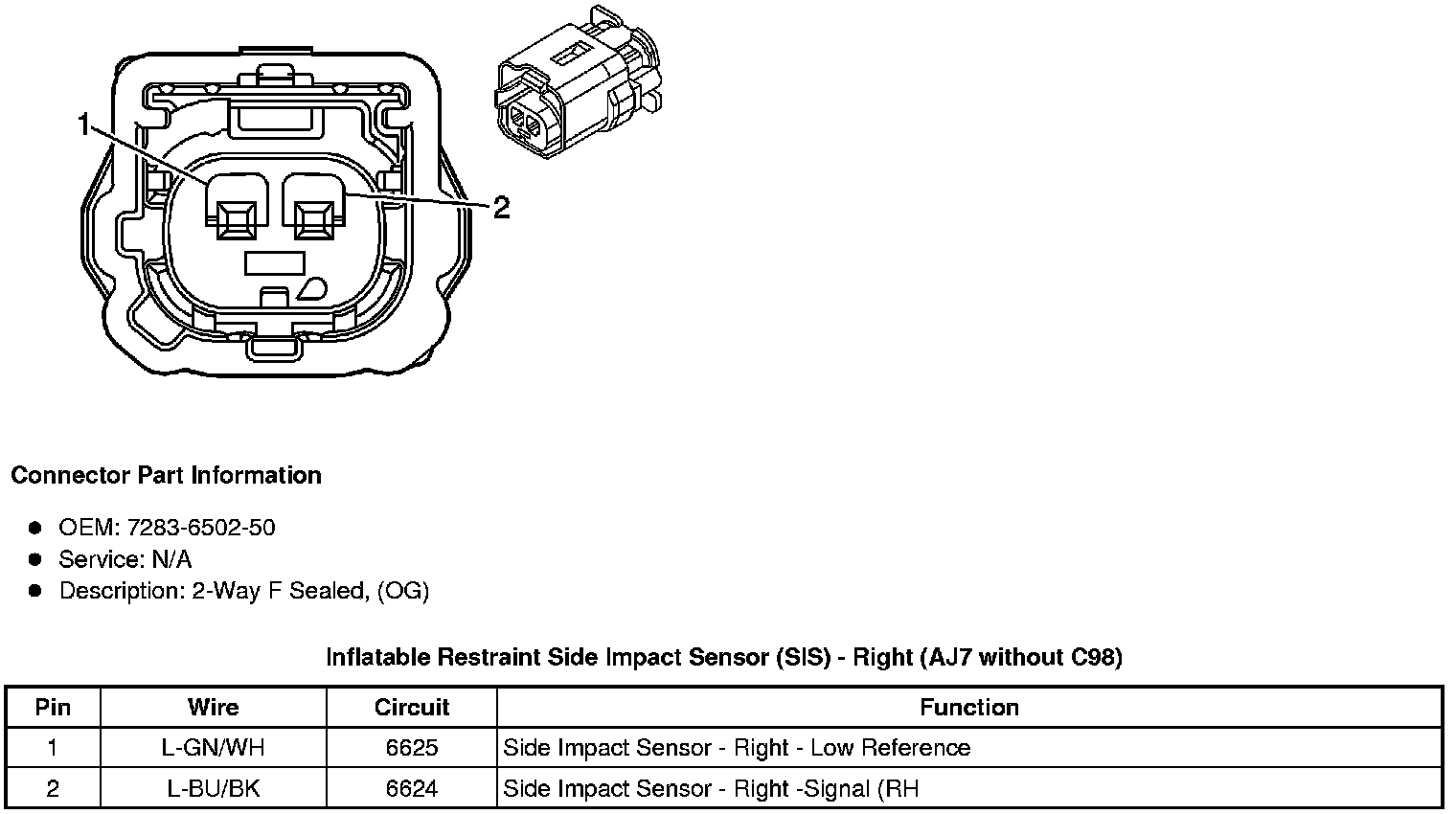

Inflatable Restraint Side Impact Sensor (SIS) - Right (AJ7 without C98)
