Dome Lamp Bulb Replacement (1 Bulb)
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

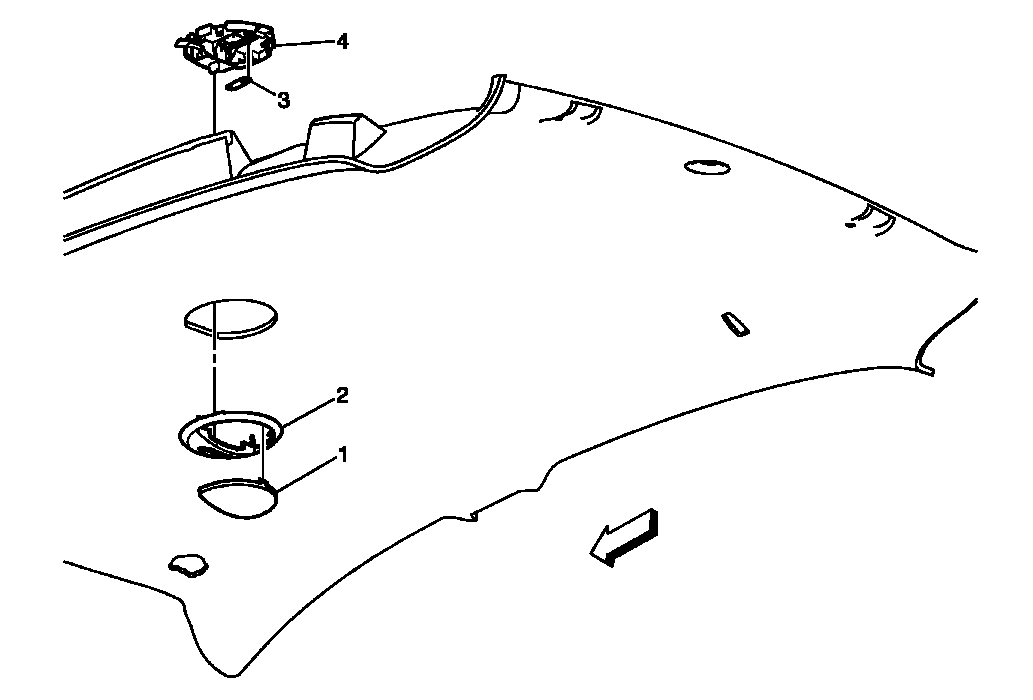

Courtesy of GENERAL MOTORS COMPANY Dome Lamp Bulb Replacement (1 Bulb)
| Callout |
Component Name |
| 1 |
Dome Lamp Lens |
| 2 |
Dome Lamp Housing |
| 3 |
Dome Lamp Bulb
TIP:
Carefully use a flat-bladed tool, and release the tabs retaining the dome lamp lens to the dome lamp housing. |
| 4 |
Dome Lamp Housing |
