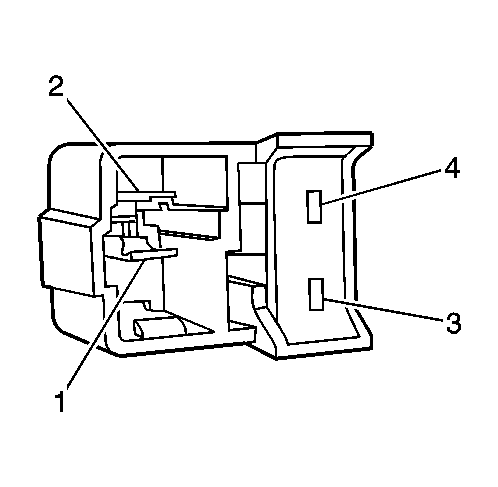

Sit-N-Lift Seat Fuse Block Connector End View (AQW)

Fig 1: Identifying Sit-N-Lift Seat Fuse Block (AQW)

Courtesy of GENERAL MOTORS CORP.

Electrical Center Identification Views

Connector Part Information  OEM: 24380 40F20 Service: Not Serviced Description: 2-Way F/2-Way M Fuse Holder (BK)

Terminal Part Information  Terminal: Not Serviced in Kit Core/Insulation Crimp: N/A Release Tool/Test Probe: N/A

Sit-N-Lift Seat Fuse Block (AQW)

Pin	Wire Color	Circuit No.	Function
1	WH	AJ01	Battery Positive Voltage
2	RD	AJ02	Battery Positive Voltage
3	RD/GN	AS32	Battery Positive Voltage
4	RD	AJ05	Battery Positive Voltage
