Removal Procedure

  1. Remove the front seat cushion outer trim panel. Refer to Trim Panel Replacement - Front Seat .
  2. Disconnect the electrical connector from the front seat wiring harness.
    3. Fig 1: Front Seat Electrical Connector (Impala)
    GM569056Courtesy of GENERAL MOTORS CORP.
  3. Remove the front seat heated seat switch, using a small, flat-bladed tool to release the retainer clips.

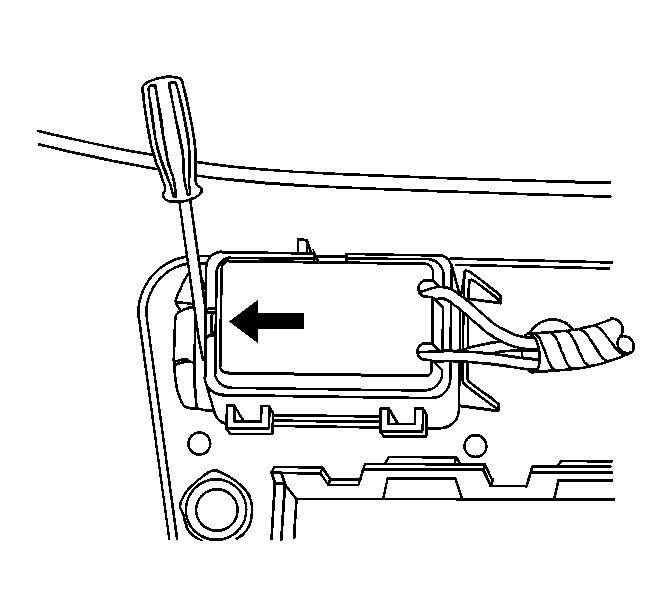

    4. Fig 2: Removing Front Seat Heated Switch (Impala)
    GM569067Courtesy of GENERAL MOTORS CORP.
  4. Remove the front seat heated seat switch from the front seat cushion outer trim panel.
    5. Fig 3: Removing Switch From Outer Trim Panel (Impala)
    GM569059Courtesy of GENERAL MOTORS CORP.
