Removal Procedure

Open the hood.
Disconnect the cruise control cable tab (5) from the throttle body cam (6). Rotate the throttle to 1/4 open throttle in order to release the tab (5).
In order to release the cable (4), push the locating fitting inward and pull the unit free from the throttle bracket (1).

Fig 1: Disconnecting Cruise Control Cable Tab From Throttle Body Cam
Courtesy of GENERAL MOTORS CORP.

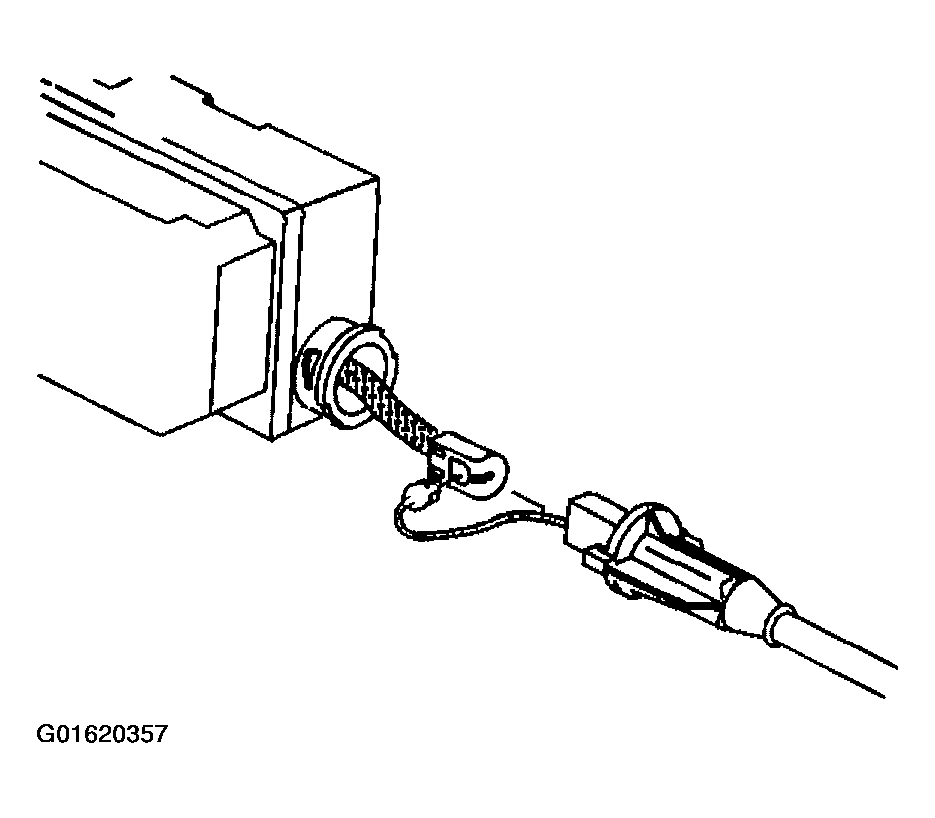

Remove the cable assembly from the module by turning the cable assembly 1/4 turn counterclockwise.

Fig 2: Turning Cable Assembly Counterclockwise For Removal
Courtesy of GENERAL MOTORS CORP.
Remove the cable from the ribbon.

Fig 3: Removing Cable From Ribbon
Courtesy of GENERAL MOTORS CORP.
Remove the cable (3) from the retaining clips (1).

Fig 4: Removing Cable From Retaining Clips
Courtesy of GENERAL MOTORS CORP.
