Headlamp Opening Door Actuator Control Module C1 Connector End View - Pontiac

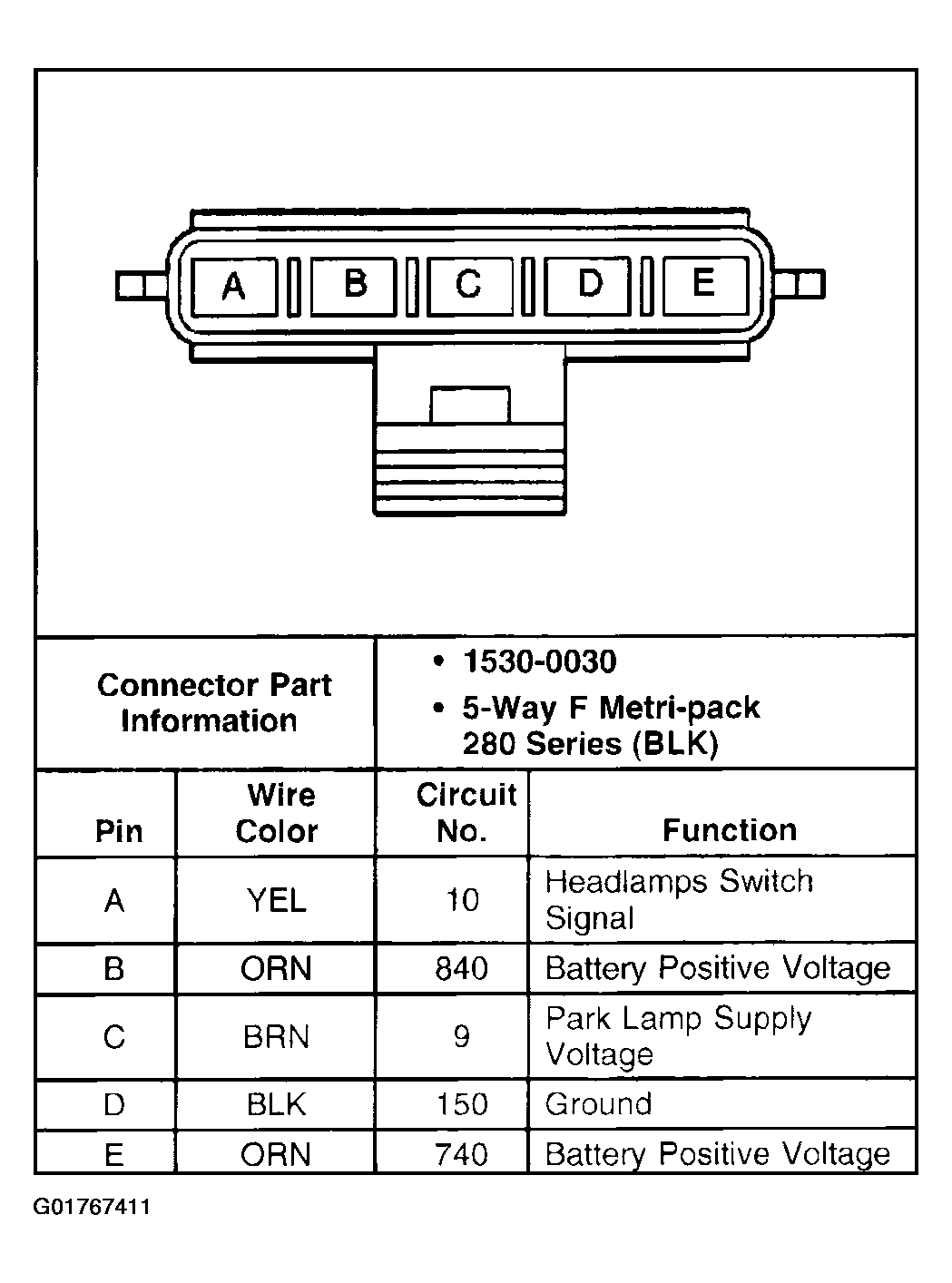

Fig 1: Headlamp Opening Door Actuator Control Module C1 Connector End View - Pontiac
G01767411Courtesy of GENERAL MOTORS CORP.
