Charging System
TurboCharging System: Turbo:

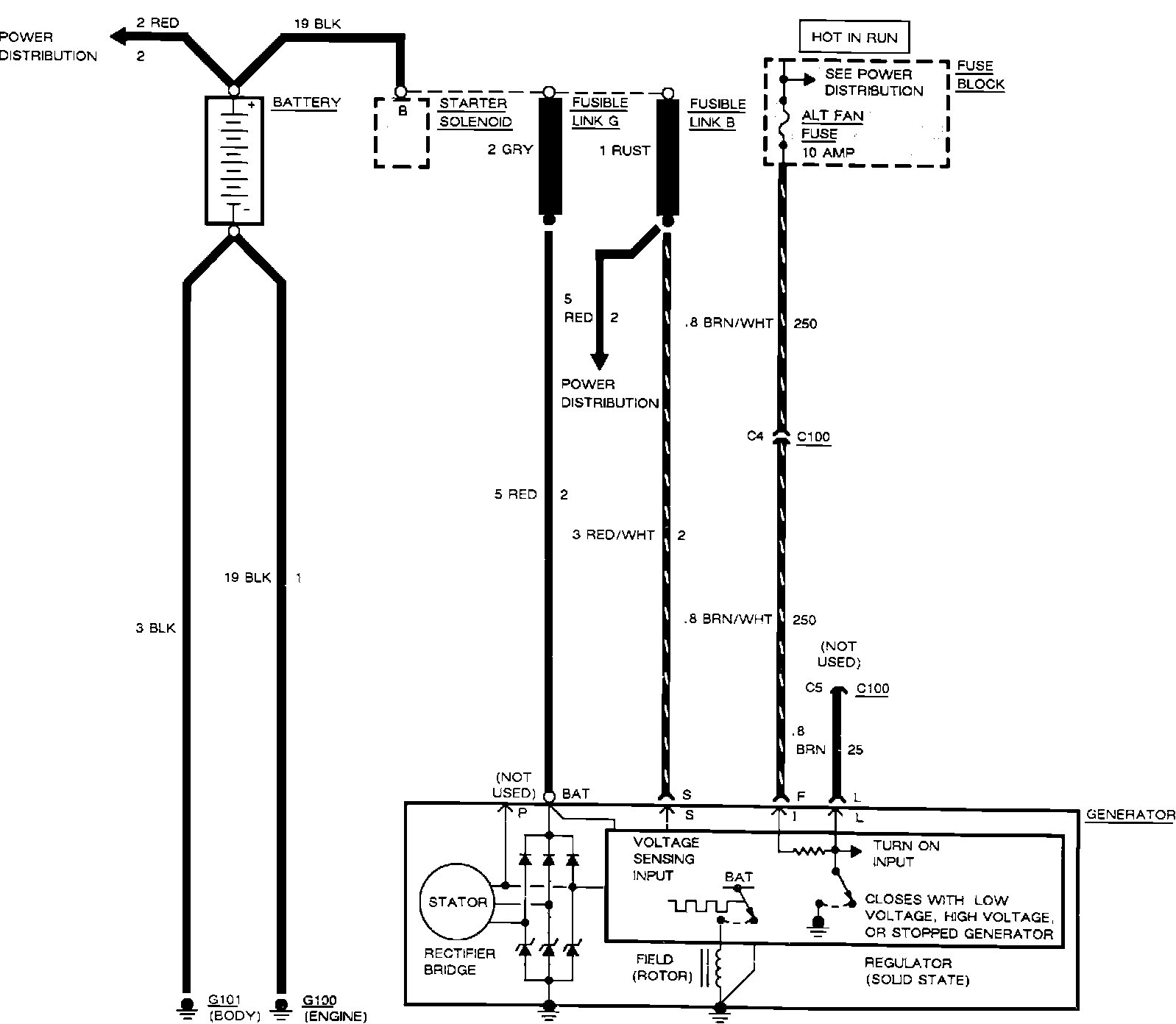

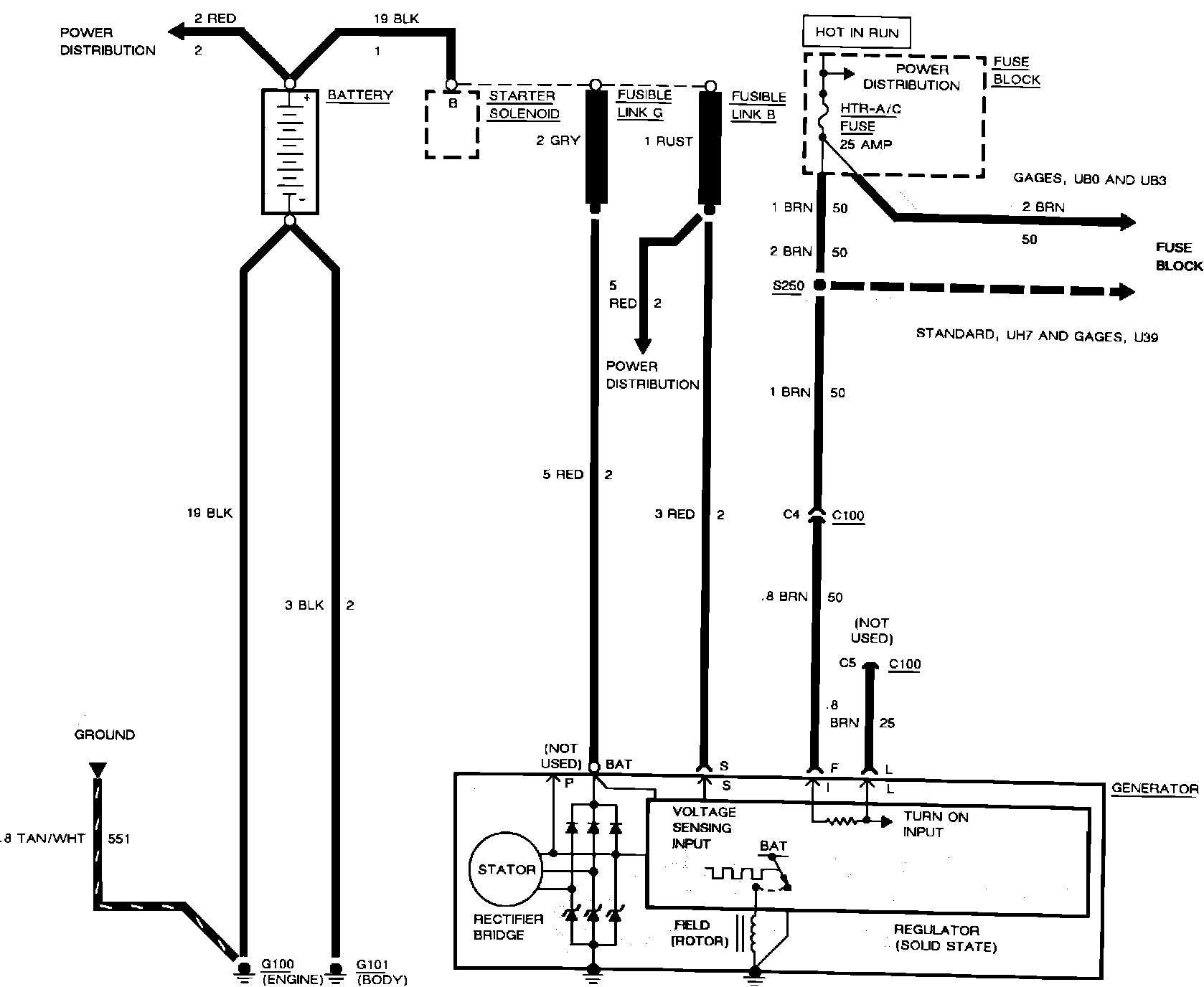

Charging System (Turbo):

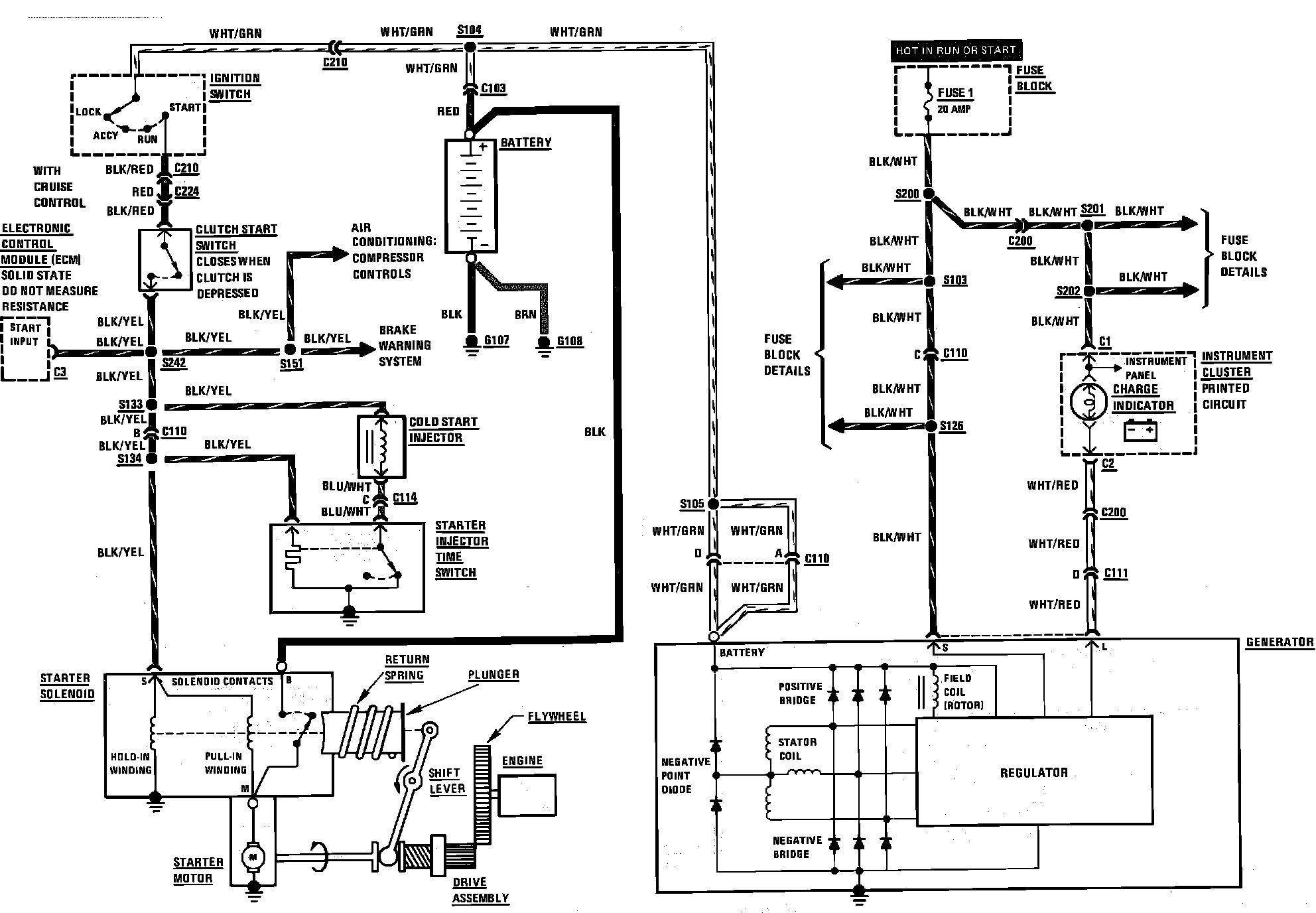

Fig. 10 Charging & Starter Wiring Circuit. Turbo:
Non-Turbo
Charging System: Non-Turbo:

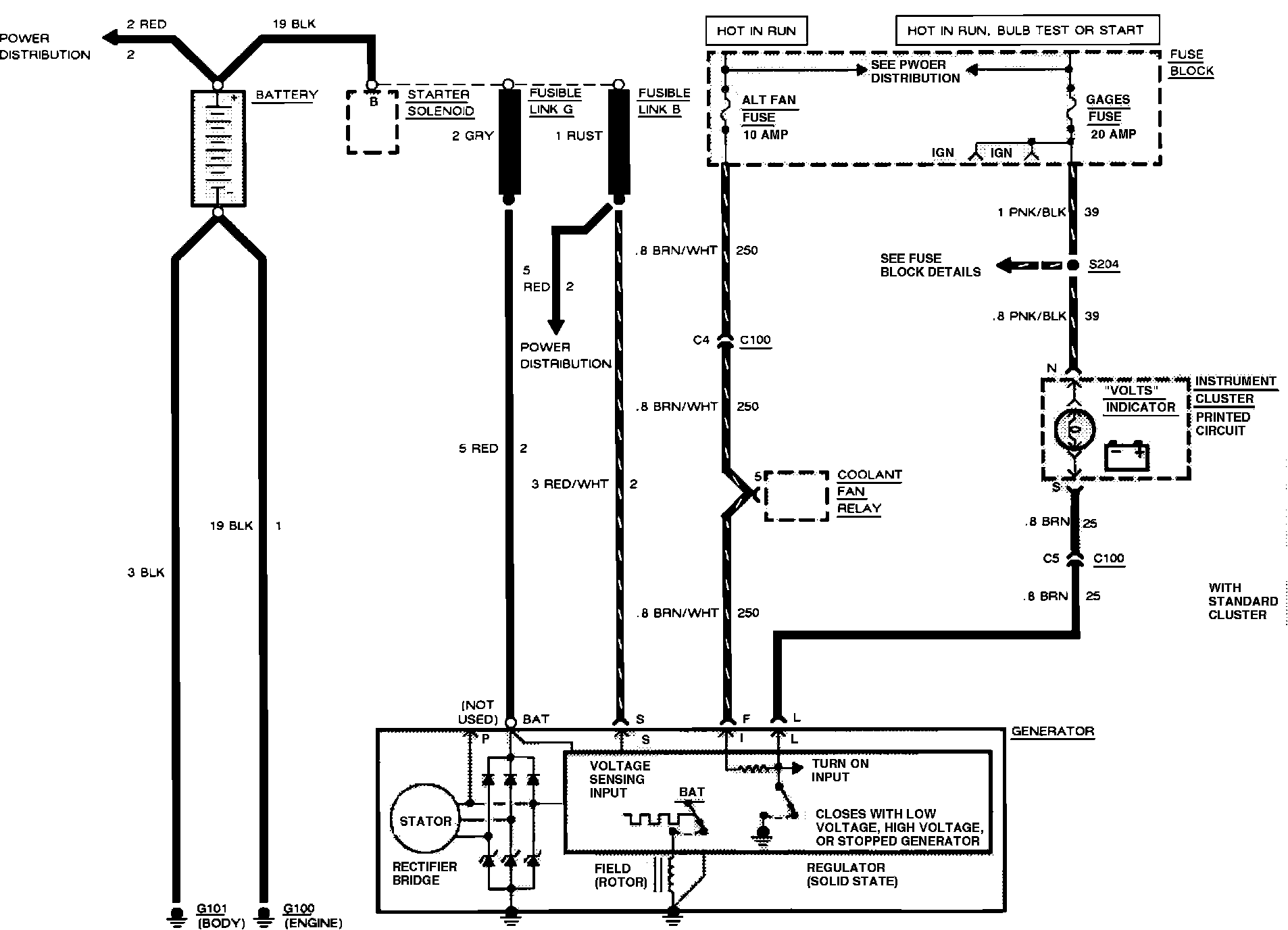

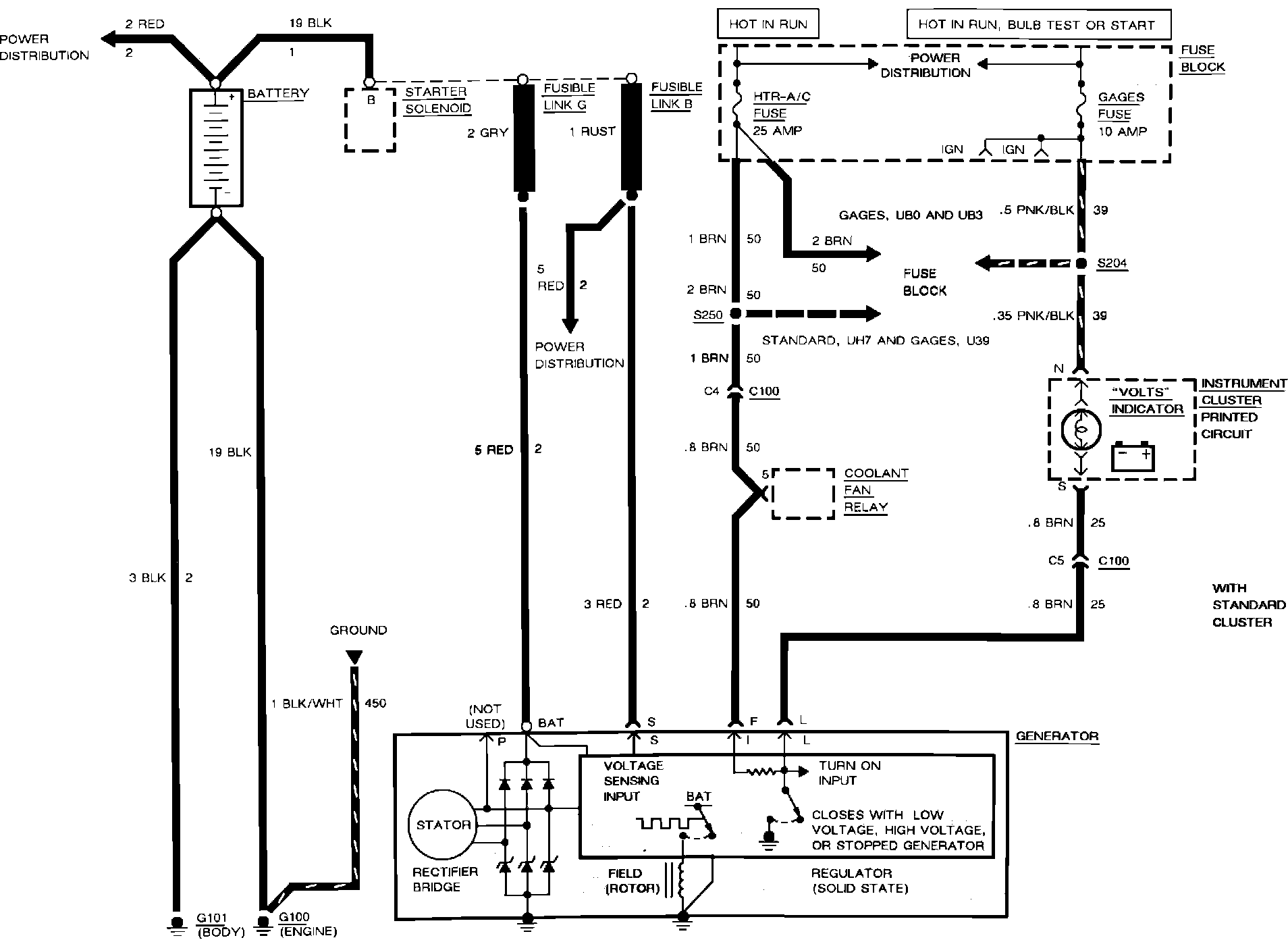

Charging System (Less Turbo):
Fig. 9 Charging & Starter Wiring Circuit. Non-Turbo:
Non-Turbo
