Both Windings in Parallel

Ground the "M" terminal and connect a 10 volt source (in series with ammeter) to solenoid switch terminal and ground. Current draw should be 40.5-47.5 amps.

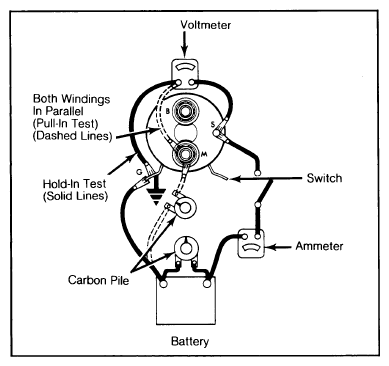

Fig 1: All Models - Connections for Testing Solenoid Windings Compare current flow with value listed in Specifications.

Courtesy of GENERAL MOTORS COMPANY
