Removal Procedure

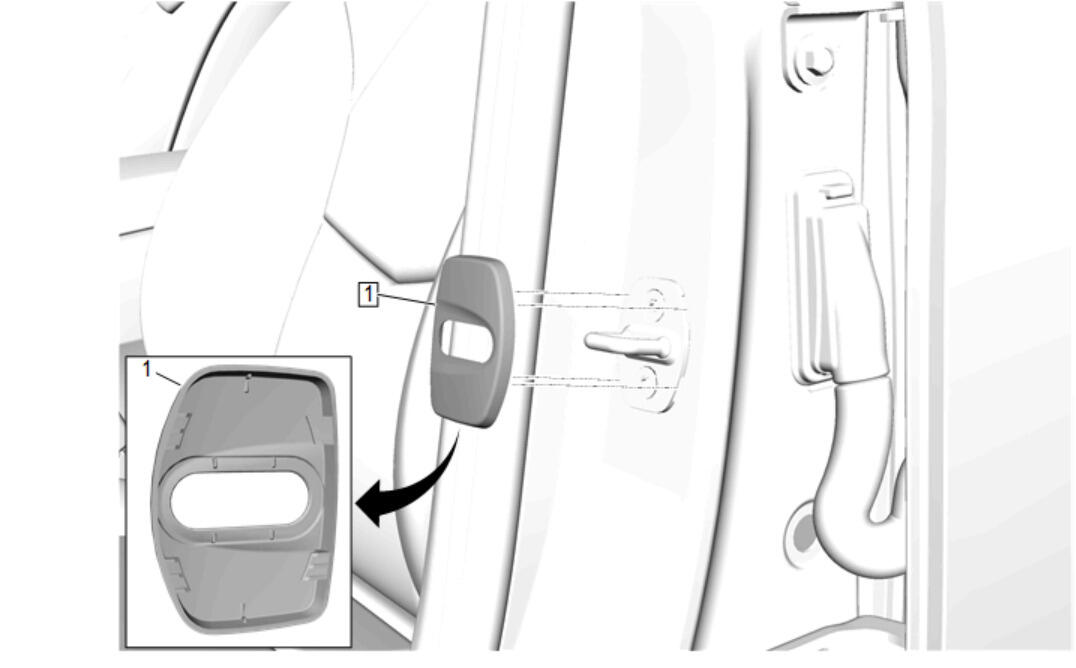

  1. GM5317816Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, release the retaining tabs from the outboard edge of the front side door latch striker cover (1).

  2. Front Side Door Latch Striker Cover (1) - Remove
