M8 Blower Motor
 Courtesy of GENERAL MOTORS COMPANY
|

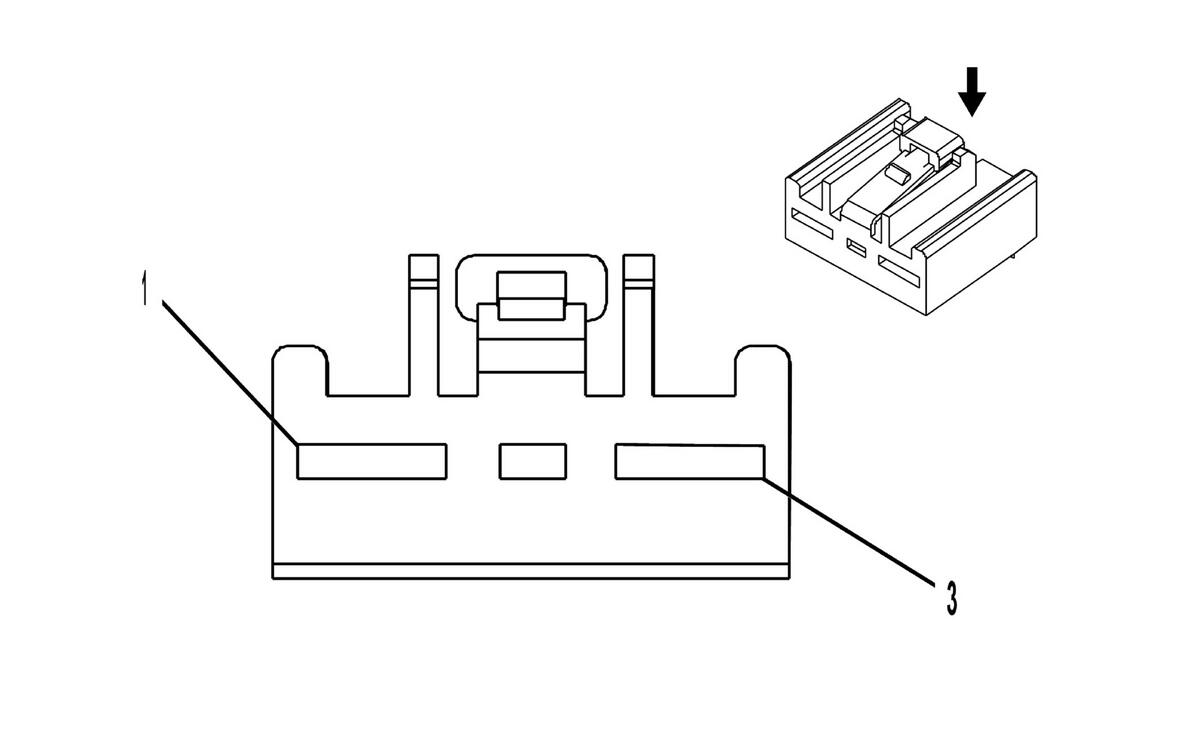

Connector Part Information
- Harness Type: Blower Motor
- OEM Connector: 7283-3032
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 187, 312 Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
5 |
BK |
1450 |
Ground |
I |
- |
| 2 |
0.5 |
WH/BU |
754 |
Blower Motor Speed Control |
I |
- |
| 3 |
5 |
RD |
542 |
Battery Positive Voltage |
I |
- |
