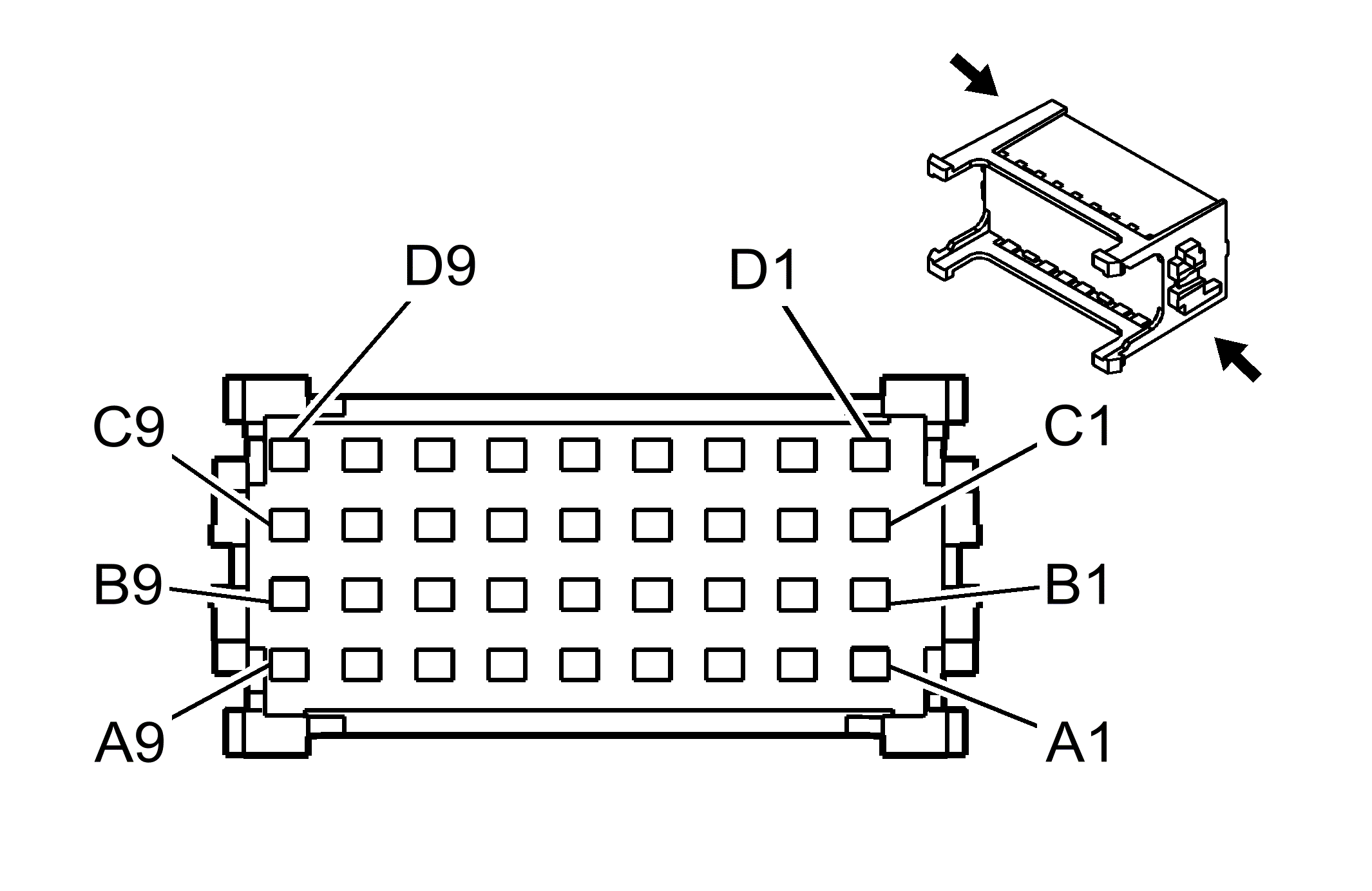

Fuse Block - Mobile Radio (5W4, 9L4 or PPV)
Courtesy of GENERAL MOTORS COMPANY Fuse Block - Mobile Radio (5W4, 9L4 or PPV)
| Pin |
Wire |
Circuit |
Function |
| A1-A7 |
- |
- |
Not Used |
| A8 |
3 BK |
50 |
Ground (9L4) |
| A9 |
3 BK |
450 |
Ground (9L4) |
| B1 |
3 L-BU |
6122 |
Mobile Radio Relay Contact Control 1 (9L4) |
| 3 L-GN |
6839 |
Auxiliary Device #1 Switched Voltage (5W4 or PPV) |
| B2 |
- |
- |
Not Used |
| B3 |
1 BK |
450 |
Ground (9L4) |
| 1 BK |
450 |
Ground (9L4) |
| 0.5 BK |
1050 |
Ground (5W4 or PPV) |
| 0.5 BK |
1050 |
Ground (5W4 or PPV) |
| B4 |
- |
- |
Not Used |
| B5 |
3 L-GN |
6123 |
Mobile Radio Relay Contact Control 2 (9L4) |
| 3 D-GN |
6840 |
Auxiliary Device #2 Switched Voltage (5W4 or PPV) |
| B6 |
- |
- |
Not Used |
| B7 |
1 BK |
450 |
Ground (9L4) |
| 0.5 BK |
1050 |
Ground (5W4 or PPV) |
| B8 |
3 RD/WH |
5440 |
Battery Positive Voltage |
| B9 |
5 RD/BK |
102 |
Battery Positive Voltage |
| C1 |
0.5 YE |
43 |
Accessory Voltage (9L4) |
| 0.5 L-BU |
6842 |
Auxiliary Device Relay #1 Switched Control (5W4 or PPV) |
| C2 |
- |
- |
Not Used |
| C3 |
3 RD/WH |
5440 |
Battery Positive Voltage |
| C4 |
- |
- |
Not Used |
| C5 |
3 L-BU |
6122 |
Mobile Radio Relay Contact Control 1 |
| 0.5 D-BU |
6843 |
Auxiliary Device Relay #2 Switched Control (5W4 or PPV) |
| C6 |
- |
- |
Not Used |
| C7 |
3 RD/WH |
5440 |
Battery Positive Voltage |
| C8 |
3 BK |
50 |
Ground |
| C9 |
3 BK |
450 |
Ground |
| D1-D7 |
- |
- |
Not Used |
| D8 |
3 RD/WH |
5440 |
Battery Positive Voltage |
| D9 |
5 RD/BK |
102 |
Battery Positive Voltage |
Connector Part Information
- Harness Type: Accessory Power
- OEM Connector: 12160504
- Service Connector: Service by Harness - See Part Catalog
- Description: 36-Way F Metri-Pack 280 Series, Flexlock (BK)
|
Terminal Part Information
- Pins: A8, A9, B1, B3 (9L4), B5, B7 (5W4 or PPV), B8, C1, C3, C5, C7-C9, D8
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: Not Available
- Diagnostic Test Probe: Not Available
- Terminal/Tray: Service by Harness - See Part Catalog
- Core/Insulation Crimp: Not Available
- Pins: B3 (5W4 or PPV), B7 (9L4)
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12110652/4
- Core/Insulation Crimp: F/D
- Pins: B9, D9
- Terminated Lead: Service by Harness - See Part Catalog
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12110657/4
- Core/Insulation Crimp: B/G
|
