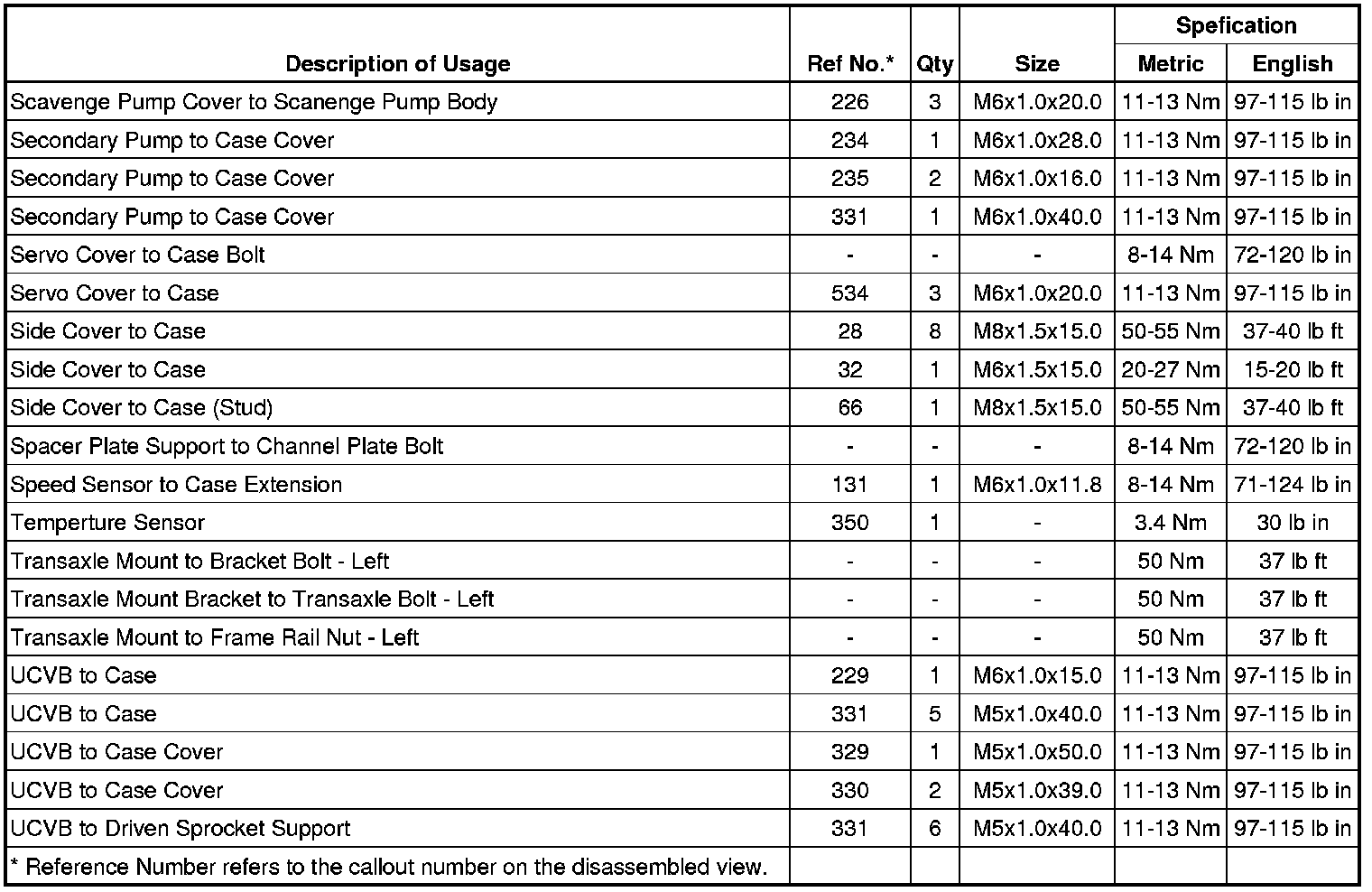

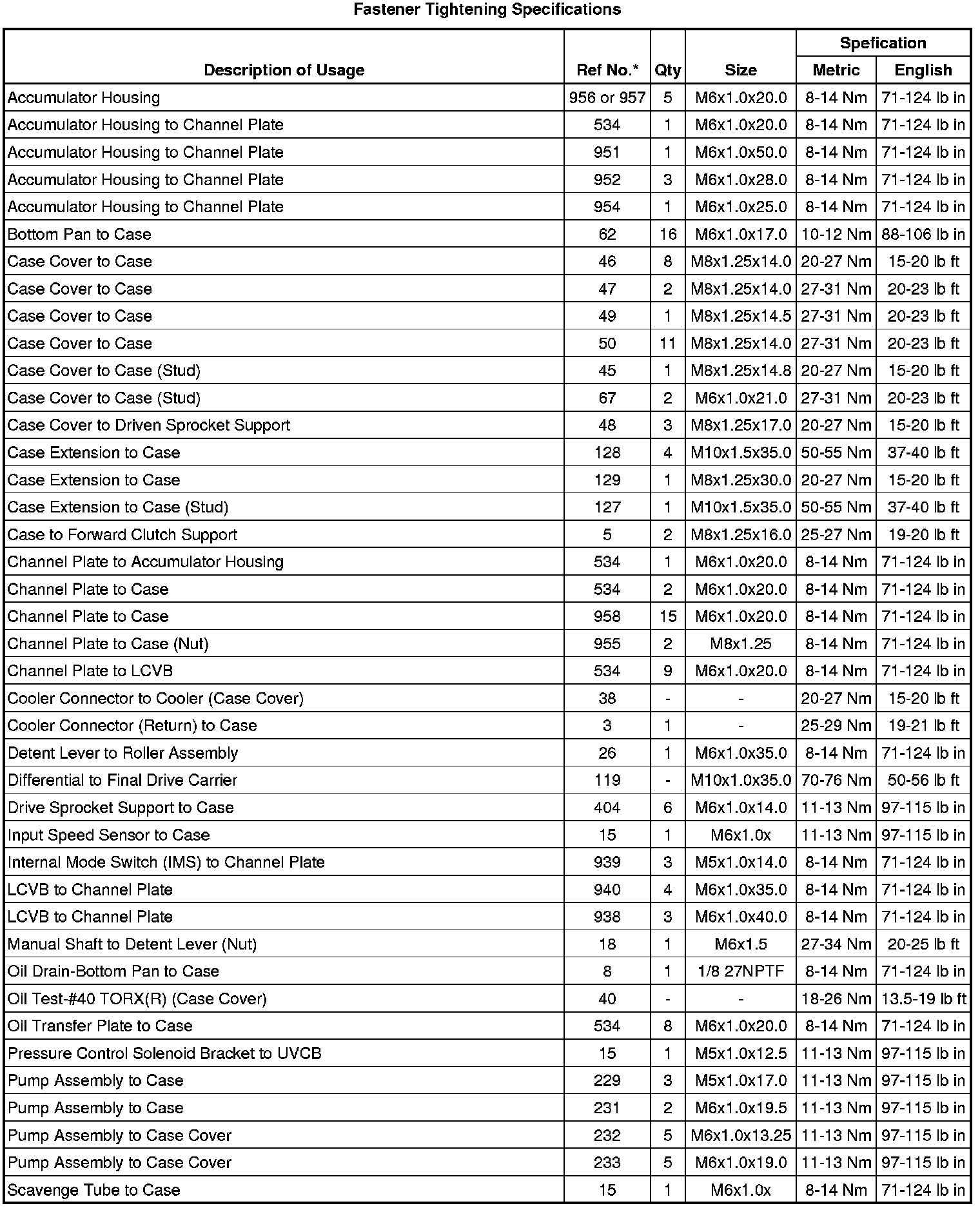

Fastener Tightening Specifications

Fastener Tightening Specifications









Flex plate

First pass 30 Nm (22 lb ft)
Final pass additional 50 degrees

Fluid pan





1. Tighten pan bolts 3 Nm (27 lb in)
2. Tighten pan bolts 6 Nm (53 lb in).
3. Tighten pan bolts 12 Nm (106 lb in)
