Power Seat Control Module

Memory Seat Module (MSM) C1 (With RPO Code A45):

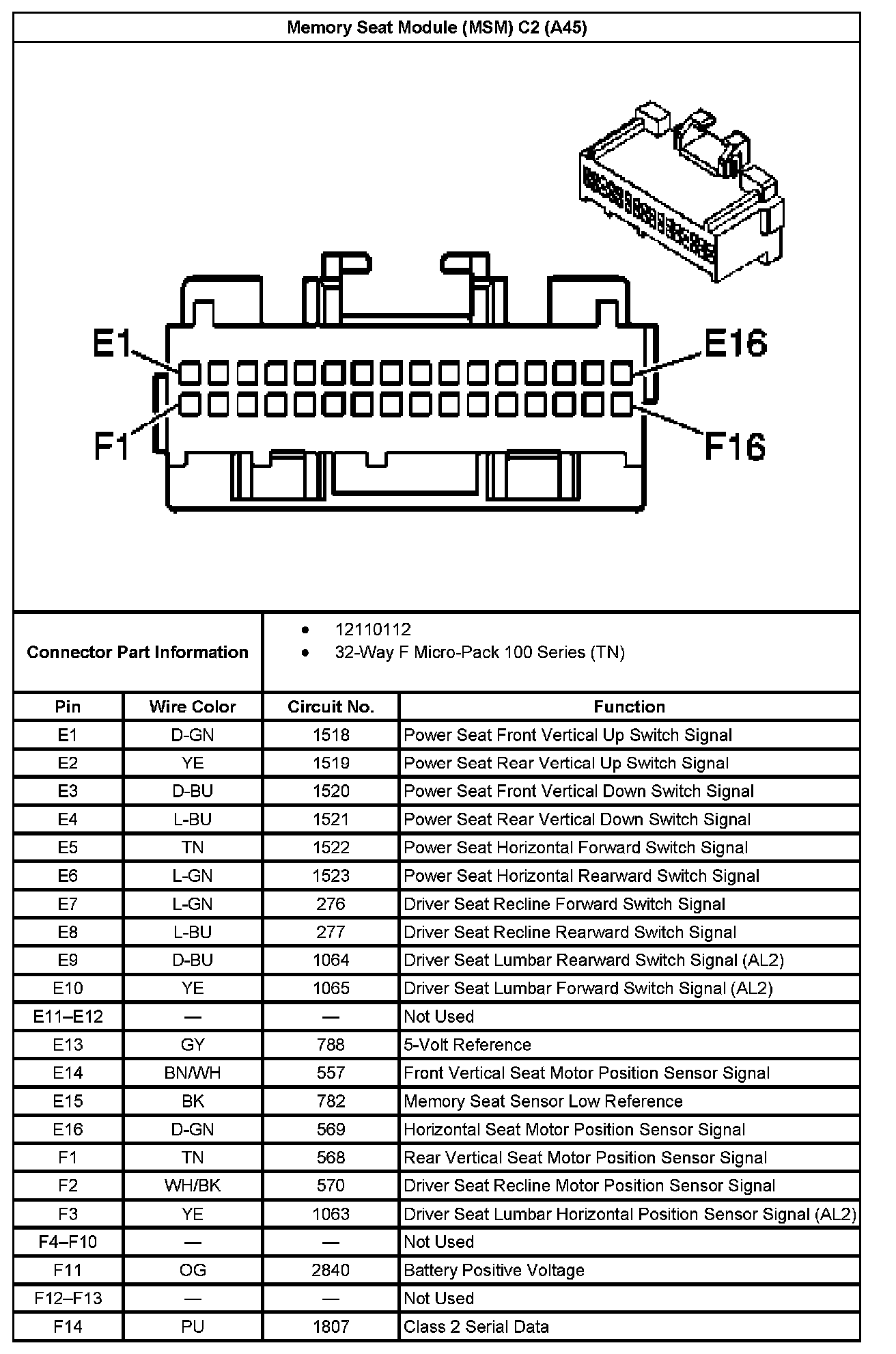

Memory Seat Module (MSM) C2 (With RPO Code A45) Part 1:



Memory Seat Module (MSM) C2 (With RPO Code A45) Part 2:

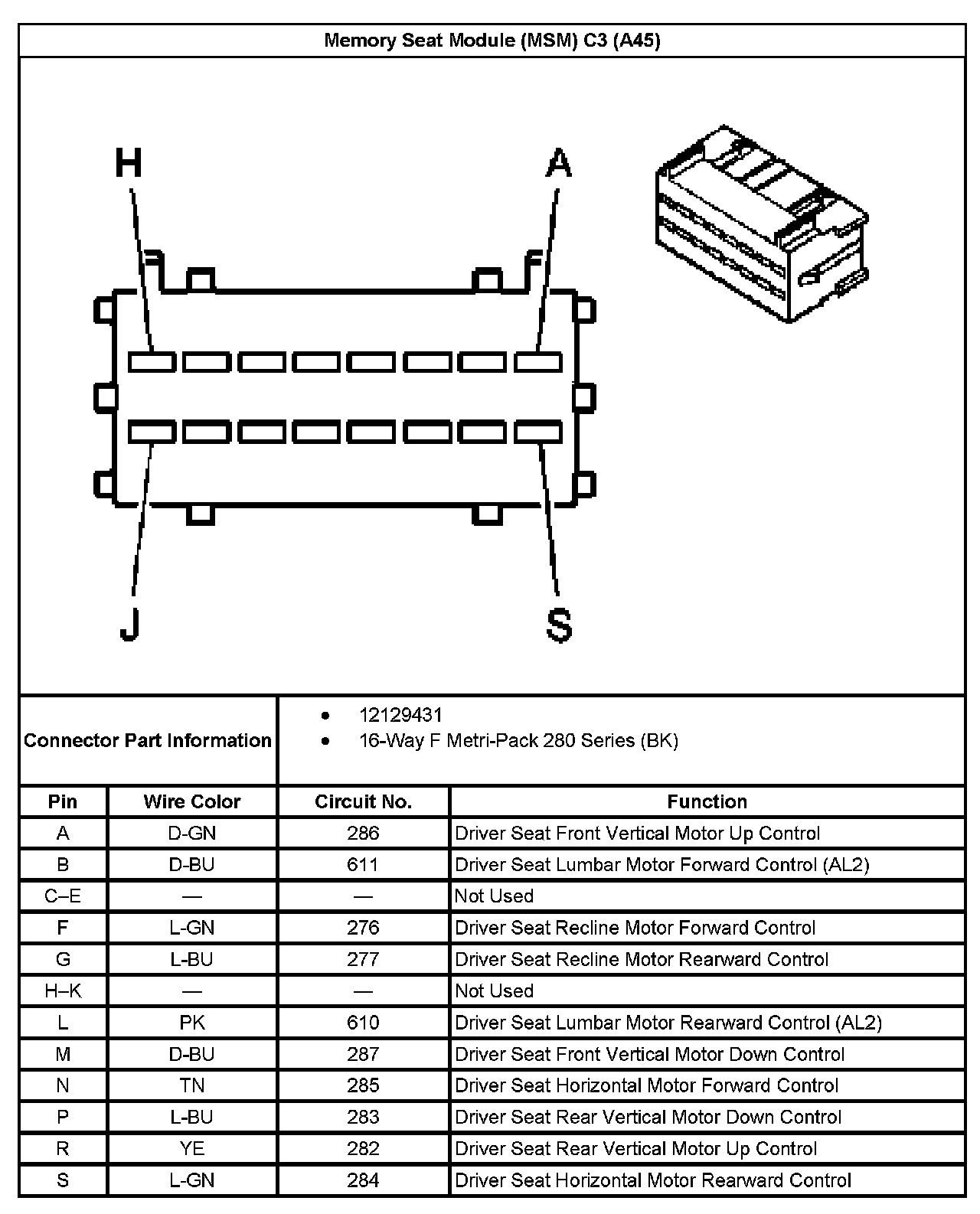

Memory Seat Module (MSM) C3 (With RPO Code A45):
