OnStar Schematics

Fig 1: Antenna, DLC, Ground, Power, & User Inputs Schematic

GM1205395

Courtesy of GENERAL MOTORS CORP.

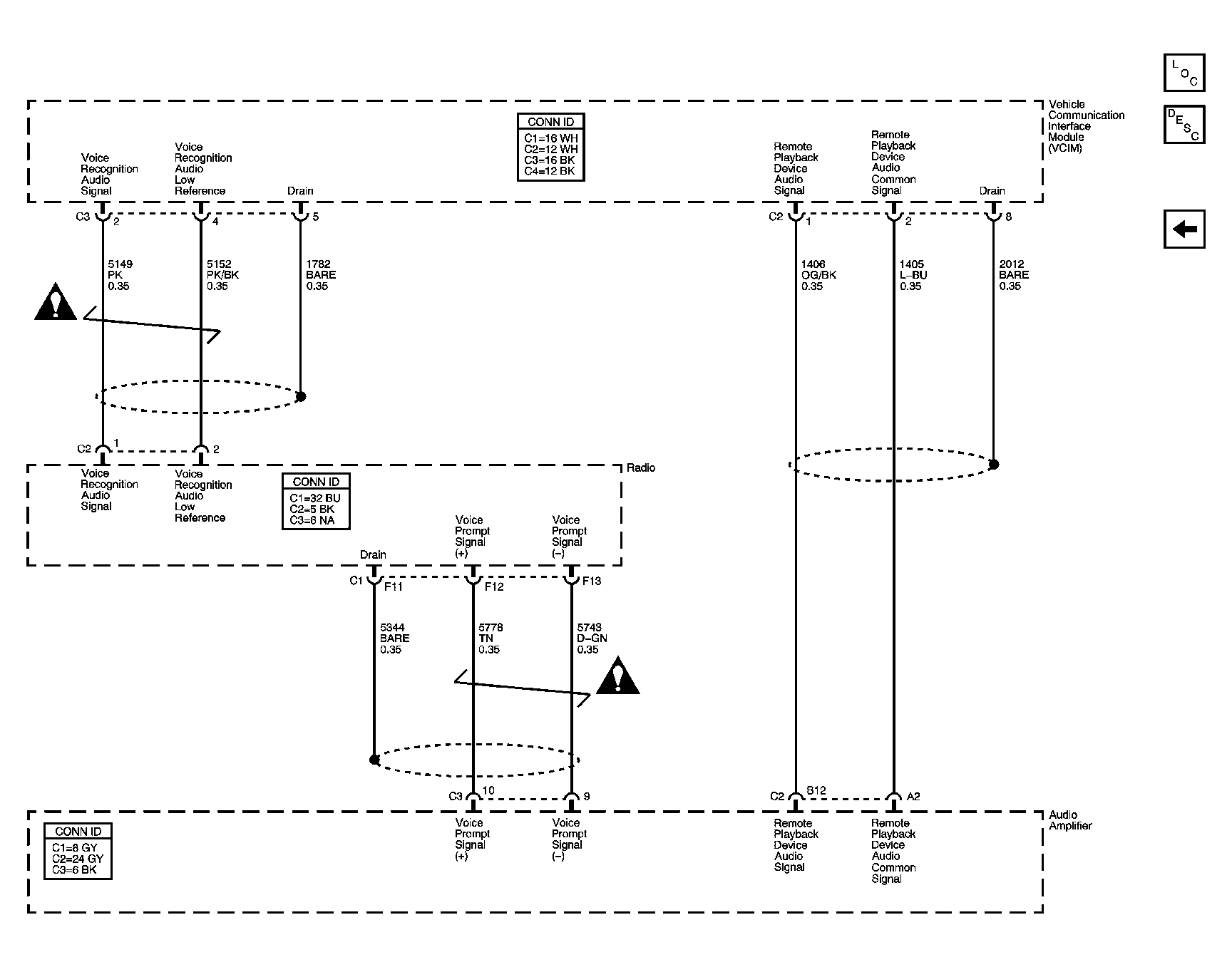

Fig 2: Audio Output Schematic

GM1205397

Courtesy of GENERAL MOTORS CORP.
