Test Guidelines For Use Of Essential Tool J 41413-200 Evaporative System Tester (01-06-04-044)

WARNING: This page is about the Seville STS, which is a different variant/trim than selected.
Publication date: 2001-11-01
Reference number: 01-06-04-044

TEST GUIDELINES FOR USE OF ESSENTIAL TOOL J 41413-200 EVAPORATIVE SYSTEM TESTER

TEST GUIDELINES FOR USE OF ESSENTIAL TOOL J 41413-200 EVAPORATIVE SYSTEM TESTER

TECHNICAL SERVICE BULLETIN

Reference Number(s): 01-06-04-044, Date of Issue:  November, 2001
GM: 2002 and Prior Passenger Cars and Light Duty Trucks with Non-Enhanced and Enhanced EVAP Systems
SECTION: 06 - Engine/Propulsion System

SERVICE INFORMATION

The J 41413-200 Evaporative Emission System Tester (EEST) updates the J 41413 Evaporative Pressure/Purge Diagnostic Station. Continue to use the appropriate Service Information substituting the J 41413-200 Evaporative Emission System Tester (EEST) and this bulletin procedure in any diagnostic step requiring the use of the J 41413. This includes the Inspection Maintenance (I/M) Emissions Diagnostic Manual Pre-OBD II GMPT/97-IM240.

Some 1996 to 1998 and all 1999 and newer GM cars and light trucks are required to illuminate the malfunction indicator lamp (MIL) when the On-Board Diagnostic (OBD II) system detects an evaporative emissions (EVAP) system leak equivalent to an orifice of 1 mm (0.040 in) diameter or greater. The new J 41413-200 EEST can be used on all GM cars and light duty trucks.

GM cars and light duty trucks that meet this new standard cannot be diagnosed using the existing ultrasonic leak detection equipment. The new J 41413-200 EEST can be used to identify leaks and to verify repairs.

The J 41413-200 EEST introduces chemically inert smoke into the sealed EVAP system under low pressure. System leaks are located by using J 41413-SPT high intensity white light to inspect for traces of smoke escaping from the sealed EVAP system.

NON-ENHANCED EVAP SYSTEM DIAGNOSTIC PROCEDURE

  1. Pinch off or plug EVAP vapor line to seal the EVAP system.
  2. Connect the EEST red battery clip to the positive (+) battery terminal. Connect the black battery clip to chassis ground.
  3. Install the appropriate fuel fill cap adapter to the fuel fill pipe. Refer to the Service Information for the appropriate fuel fill cap adapter part number.
  4. Connect the EEST's nitrogen/smoke supply hose and vehicle fuel fill cap to the adapter.
  5. Turn the nitrogen/smoke valve on the EEST control panel to SMOKE.
  6. Use the remote switch to introduce smoke into the EVAP system for 60 seconds.
    7. IMPORTANT: Additional smoke may need to be introduced at 15-second intervals until the leak source has been located.
  7. Inspect the entire EVAP system for existing smoke using the high intensity white light (J 41413-SPT).

ENHANCED EVAP SYSTEM LEAK DETECTION PROCEDURE

When diagnosing DTCs P0440, P0442, P0446 and P0455, use the J 41413-200 EEST along with the following procedure anytime the diagnostic calls for the J 41413 EVAP Pressure/Purge Diagnostic Station.

IMPORTANT: ENSURE THAT THE VEHICLE UNDERBODY TEMPERATURE IS SIMILAR TO THE AMBIENT TEMPERATURE AND ALLOW THE SURROUNDING AIR TO STABILIZE BEFORE STARTING THE DIAGNOSTIC PROCEDURE.
  1. Turn ON the ignition with the engine OFF.
  2. Command the EVAP vent valve closed with a scan tool.*
    1. *Prizm: In order to seal the EVAP system on the 1998-2002 Prizm, bypass the EVAP canister by connecting the fuel tank vapor hose to the canister purge line. Refer to the Service Information for additional information.
  3. Connect the EEST red battery clip to the positive (+) battery terminal. Connect the black battery clip to chassis ground.
  4. Install the appropriate fuel fill cap adapter to the fuel fill pipe. Refer to the Service Information for the appropriate fuel fill cap adapter part number.
  5. Connect the EEST's nitrogen/smoke supply hose and vehicle fuel fill cap to the adapter.
  6. Turn the nitrogen/smoke valve on the EEST control panel to SMOKE.
  7. Use the remote switch to introduce smoke into the EVAP system.
  8. Use the J 41413-VLV EVAP Port Vent Fitting tool to open the EVAP service port (if equipped) until smoke is observed.
  9. Remove the J 41413-VLV EVAP Port Vent Fitting tool once smoke is observed.
    10. IMPORTANT: Additional smoke may need to be introduced at 15-second intervals until the leak source has been located.
  10. Continue to introduce smoke into the EVAP system for an additional 60 seconds.
  11. Inspect the entire EVAP system for exiting smoke with J 41413-SPT high intensity white light. If leak source was located, repair as necessary and proceed to verification process.
  12. If the leak source was not located, stop introducing smoke into the EVAP system.
  13. Disconnect the fuel fill cap adapter from the fuel fill pipe. Install the fuel fill cap to the vehicle.
  14. Connect the EEST's nitrogen/smoke supply hose to the EVAP service port (if equipped).
  15. Use the remote switch to introduce smoke into the EVAP system.
  16. Inspect the entire EVAP system for exiting smoke with the J 41413-SPT high intensity white. If leak source was located, repair as necessary and proceed to verification process.
  17. If no leak was located, proceed to Fuel Tank Pressure (FTP) Sensor check.

FUEL TANK PRESSURE (FTP) SENSOR CHECK

The J 41413-200 EEST provides a tight seal to the nitrogen/smoke hose when the tester is turned off. This allows pressurizing of the sealed EVAP system. Use the following procedure to test for a functional FTP sensor.

  1. Turn ON the ignition with the engine OFF.
  2. Connect the EEST red battery clip to the positive (+) battery terminal. Connect the black battery clip to chassis ground.
  3. Install the appropriate fuel fill cap adapter to the fuel fill pipe. Refer to the Service Information for the appropriate fuel fill cap adapter part number.
  4. Connect the EEST's nitrogen/smoke supply hose and vehicle fuel fill cap to the adapter.
  5. Compare the FTP parameter, with a scan tool, to the EEST pressure/vacuum gauge.
  6. If the FTP parameter is not within 1 in H20 of the EEST pressure/vacuum gauge, replace the FTP sensor.
  7. Command the vent valve closed with a scan tool.
  8. Turn the nitrogen/smoke valve on the EEST control panel to Nitrogen.
  9. Use the remote switch to introduce nitrogen into the EVAP system.
  10. Observe the Fuel Tank Pressure (FTP) parameter with a scan tool. The FTP sensor parameter should increase to more than 5 in H20.
  11. If the FTP parameter is not more than 5 in H20, replace the FTP sensor.
  12. If the FTP parameter is more than 5 in H20, continue with appropriate Service Information.

VERIFICATION PROCEDURE

SERVICE BAY TEST

IMPORTANT: Disconnect the fuel fill cap adapter and install the fuel fill cap onto the vehicle prior to performing the EVAP Service Bay test.

Perform the EVAP Service Bay Test (if available) using a scan tool. If the Service bay Test is not available, proceed to Flow Meter Test.

The Service Bay Test will verify the proper operation of the EVAP system and reset the Emissions Inspection/Maintenance EVAP flag.

RESULTS

  • If the Service Bay test is passed, testing is complete.
  • If the Service Bay Test is not passed, return to the appropriate Service Information.

FLOW METER TEST

The flow meter test must be used to verify repairs on vehicles with enhanced EVAP systems that do not have the EVAP Service Bay Test.

  1. Turn the nitrogen/smoke valve to nitrogen.
  2. Disconnect the nitrogen/smoke hose from the fuel fill cap adapter.
  3. Connect the nitrogen/smoke hose to the correct test orifice on the bottom-front of the EEST. The correct test orifice can be determined by referencing Fig 1 and Fig 2 .
  4. Use the remote switch to activate the EEST.
  5. Align the red flag on the flow meter with the floating indicator. Use the remote switch to de-activate the EEST.
  6. Remove the nitrogen/smoke hose from the test orifice and reinstall the hose onto the fuel fill cap adapter.
  7. Turn ON the ignition with the engine OFF.
  8. Command the EVAP vent valve closed with a scan tool.
    9. IMPORTANT: Larger volume fuel tanks and/or those with lower fuel levels may require several minutes for the floating indicator to stabilize.
  9. Use the remote switch to introduce nitrogen and fill the EVAP system. Watch the floating indicator until it stabilizes.
  10. Compare the flow meter's stable floating indicator position to the red flag. If the indicator floats:
    • ABOVE the red flag - UNACCEPTABLE (EVAP system leak still exists - go to Enhanced EVAP System Leak Detection Procedure earlier in this bulletin).
    • BELOW the red flag - ACCEPTABLE (PASS - test complete).

The following charts should be used to select the correct orifice for the Verification Process if the Service Information does not specifically list the information.

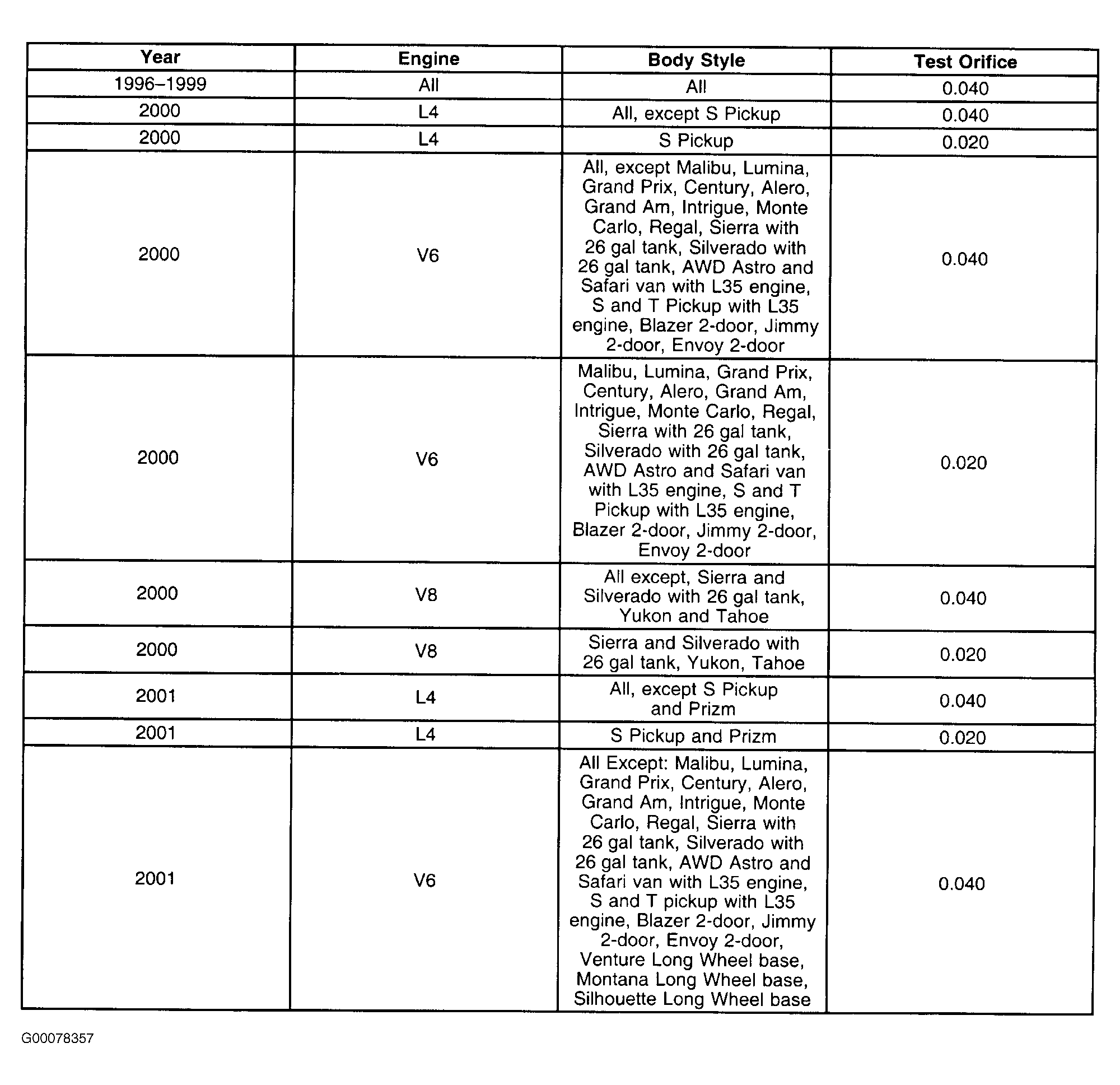

Fig 1: Verification Process For Correct Orifice Chart (1 Of 2)
G00078357
Fig 2: Verification Process For Correct Orifice Chart (2 Of 2)
G00078358
