Lo-Reverse Clutch & Spacer

Inspection

1. Inspect lo and reverse clutch composition-faced and steel clutch plates for signs of wear and burning.

2. Inspect lo and reverse clutch housing to case spacer for damage.

Assembly & Installation

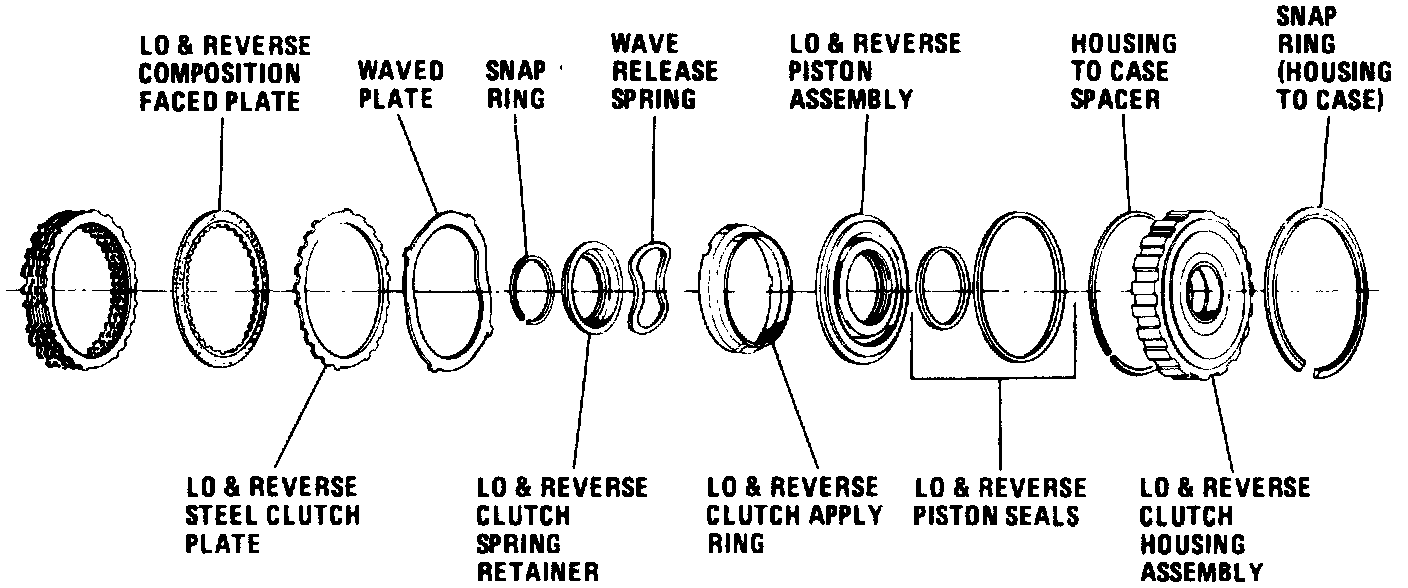

1. Oil and install the lo and reverse clutch plates into case, starting with a flat steel and alternating with composition-faces and flat steel clutch plates, see image.





2. Install steel waved plate, see image.

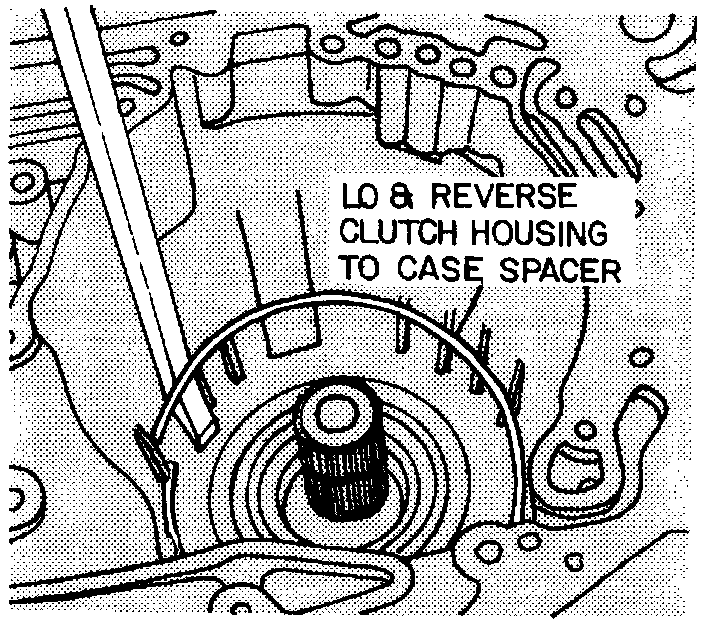

3. Install lo and reverse clutch housing to case spacer into case, see image.
