Installation Procedure

  1. GM4626840Courtesy of GENERAL MOTORS COMPANY

    Starter (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Starter Bolt (1) - Install and tighten 25 N.m (18 lb ft) [2x]

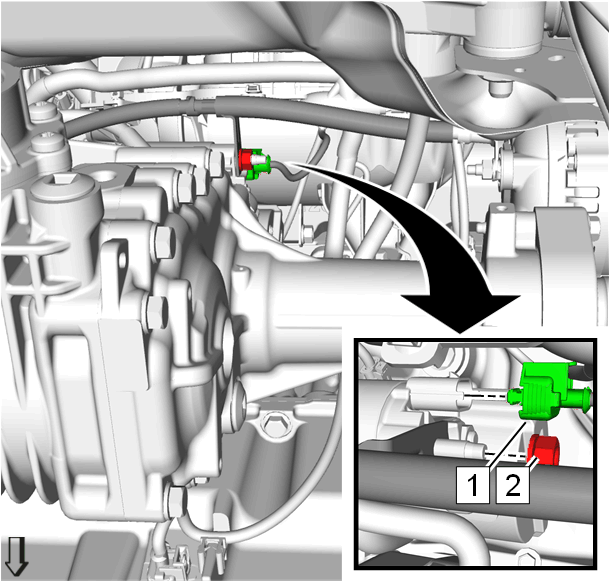

  3. GM4626839Courtesy of GENERAL MOTORS COMPANY

    Battery Positive Cable - Reposition

  4. Starter Lead Nut (2) - Install and tighten 12.5 N.m (111 lb in)
  5. Electrical Connector (1) - Connect
  6. Exhaust Front Pipe - Remove - Exhaust Front Pipe Replacement (LTG AWD) , or Exhaust Front Pipe Replacement (LTG FWD)
  7. Lower the vehicle.
  8. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (2.0L LTG)
