Home >> Buick >> 2020 >> Enclave Premium, AWD >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Vehicle Access System >> Schematic Wiring Diagrams >> Door Lock/Indicator Wiring Schematics >> Actuators

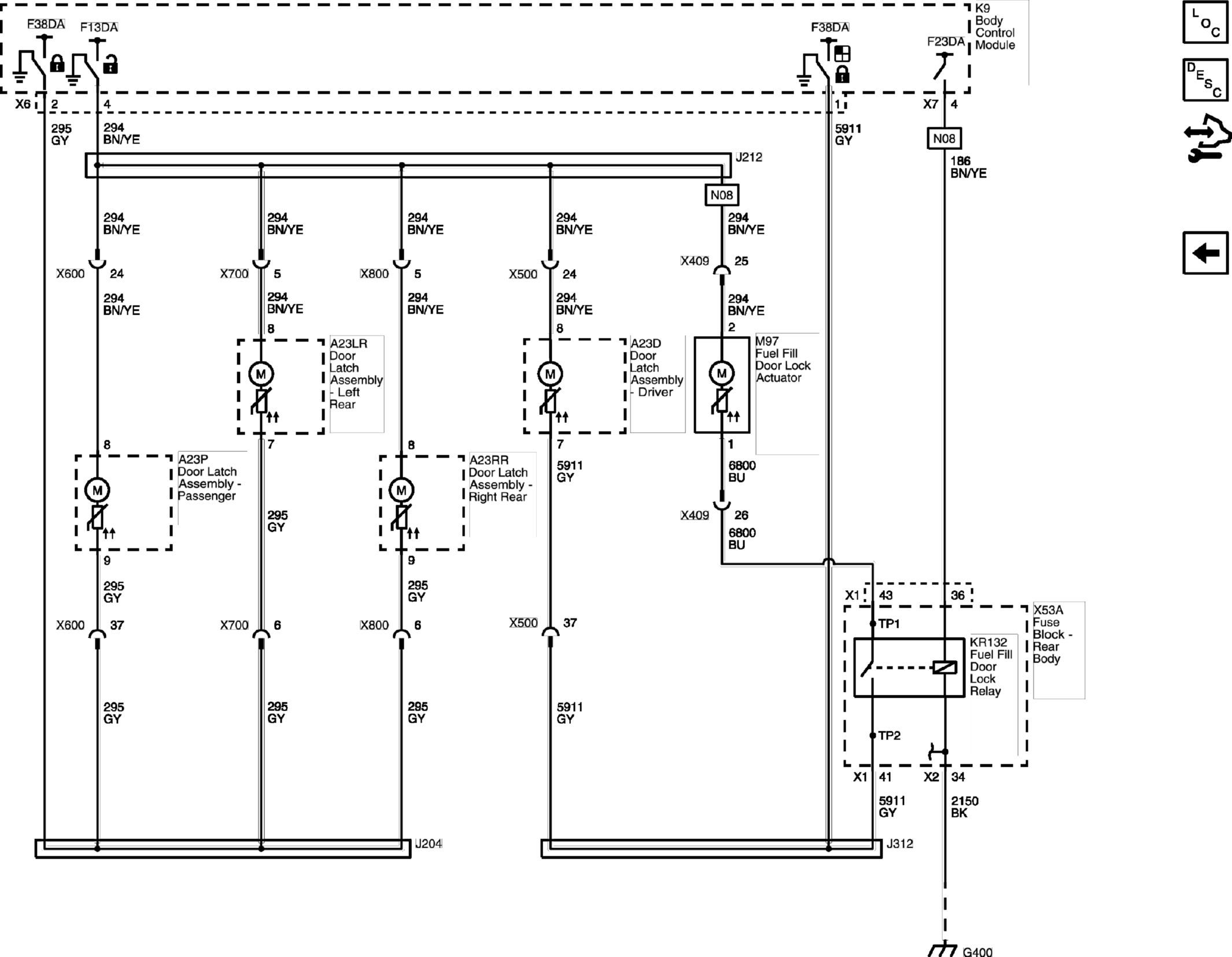

Door Lock/Indicator Wiring Schematics: Actuators

GM5209600

Courtesy of GENERAL MOTORS COMPANY
