Exhaust Rear Muffler Rear Hanger Replacement

Courtesy of GENERAL MOTORS COMPANY

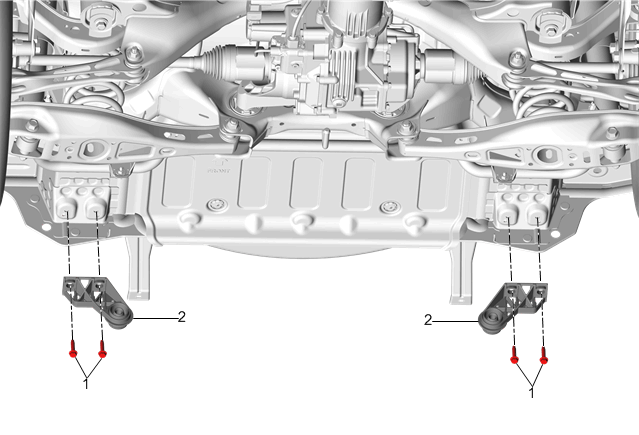

Callout	Component Name
Preliminary Procedure  Exhaust Muffler Replacement
1	Exhaust Rear Muffler Rear Hanger Fastener [4x] CAUTION: Refer to Fastener Caution . Tighten  22 N.m (16 lb ft)
2	Exhaust Rear Muffler Rear Hanger
