Rear Body Fuse Block Replacement

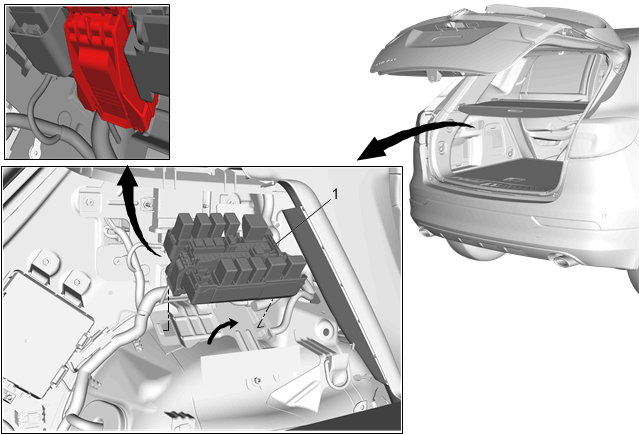

Fig 1: Rear Body Fuse Block
GM3919456Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Battery Negative Cable Disconnection and Connection
  2. Remove the left side quarter lower rear trim panel. Quarter Lower Rear Trim Panel Replacement
1 Rear Body Fuse Block

Procedure

  1. Release the retainer tab by pushing in on the tab.
  2. Rotate the rear fuse block up and to the right and remove the fuse block from the bracket.
  3. Disconnect all electrical connectors.
