Section 77 (Sunroof System)
>>
Wiring Schematics
>>
Sunroof Wiring Schematics
Sunroof Wiring Schematics
WARNING:
This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

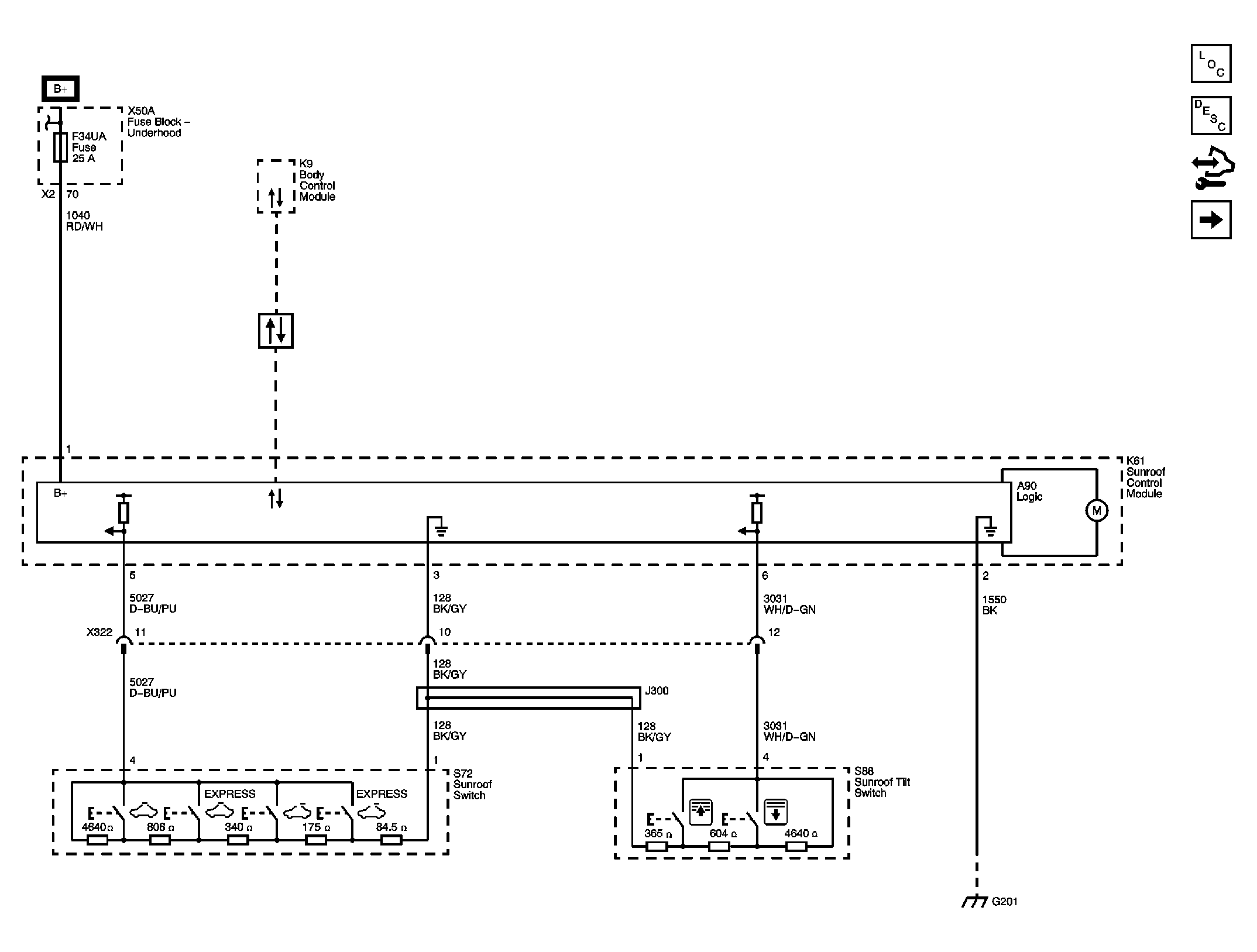

Fig 1: Sunroof Wiring Schematic (CF5)
Courtesy of GENERAL MOTORS CORP.
