Rear Side Door Outside Handle Housing Replacement

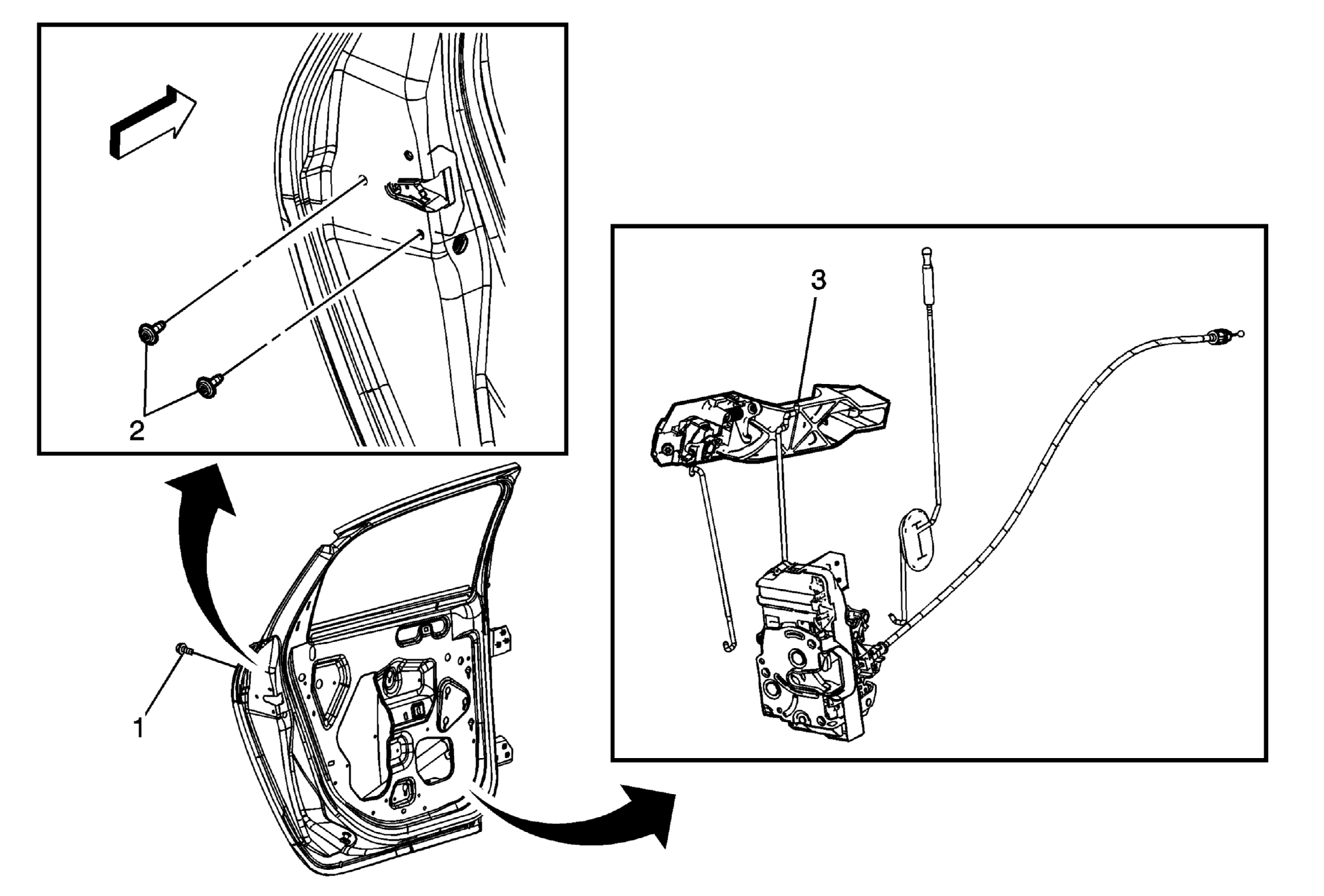

Fig 1: Identifying Rear Side Door Outside Handle Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement (Traverse) , Rear Side Door Trim Panel Replacement (Enclave) , Rear Side Door Trim Panel Replacement (Acadia) . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the outside door handle. Refer to Rear Side Door Outside Handle Replacement .
1	Rear Side Door Outside Handle Housing Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Side Door Lock Bolt (Qty: 2) Tighten 10 N.m (89 lb in)
3	Rear Side Door Outside Handle Housing Procedures Disconnect the lock and handle rods to remove the housing. Release the inside handle cable retainers before removing the door lock. Disconnect the door lock electrical connector.
