Fuse Block - Rear X4

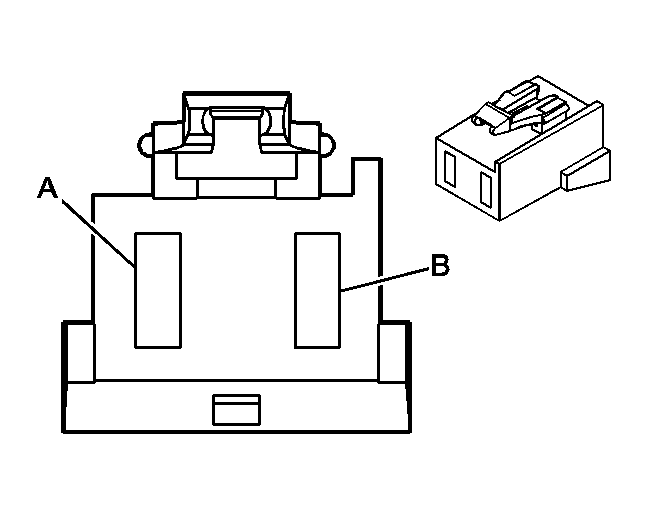

Fig 1: Fuse Block - Rear X4 Connector End View
GM280788Courtesy of GENERAL MOTORS CORP.
Fuse Block - Rear X4

Pin Wire Circuit Function
A - - Not Used
B 5 PK/OG 2540 Battery Positive Voltage
Connector Part Information
  • OEM: 12146038
  • Service: See Catalog
  • Description: 2-Way F Maxi Fuse (GY)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
