Removal Procedure

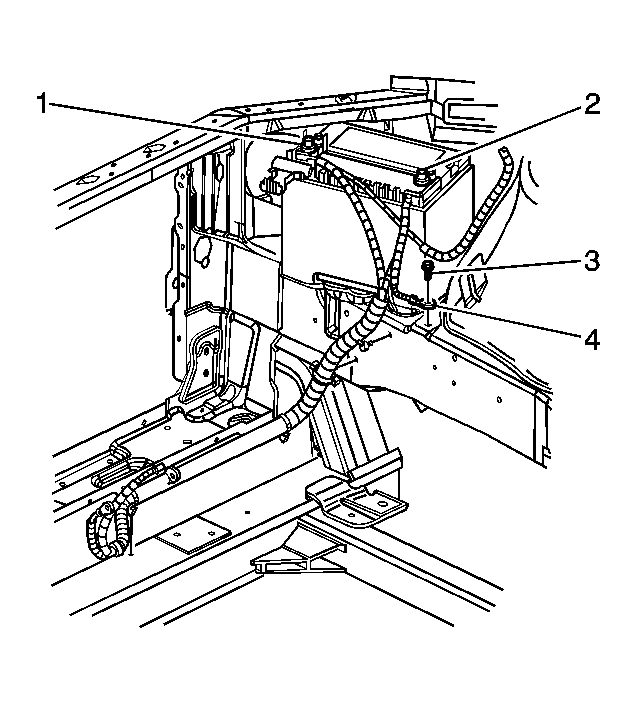

    Fig 1: Identifying Battery Terminals & Ground Wire
    GM911131Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR Caution .
    CAUTION: Refer to Battery Disconnect Caution .
  1. Record all of the vehicle preset radio stations.
  2. Turn OFF all the lamps and the accessories.
  3. Ensure the ignition switch is in the OFF position.
  4. Loosen the negative battery cable terminal nut.
  5. Remove the negative battery terminal (2) from the battery.
