Home >> Buick >> 2002 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head Assembly

Cylinder Head Assembly

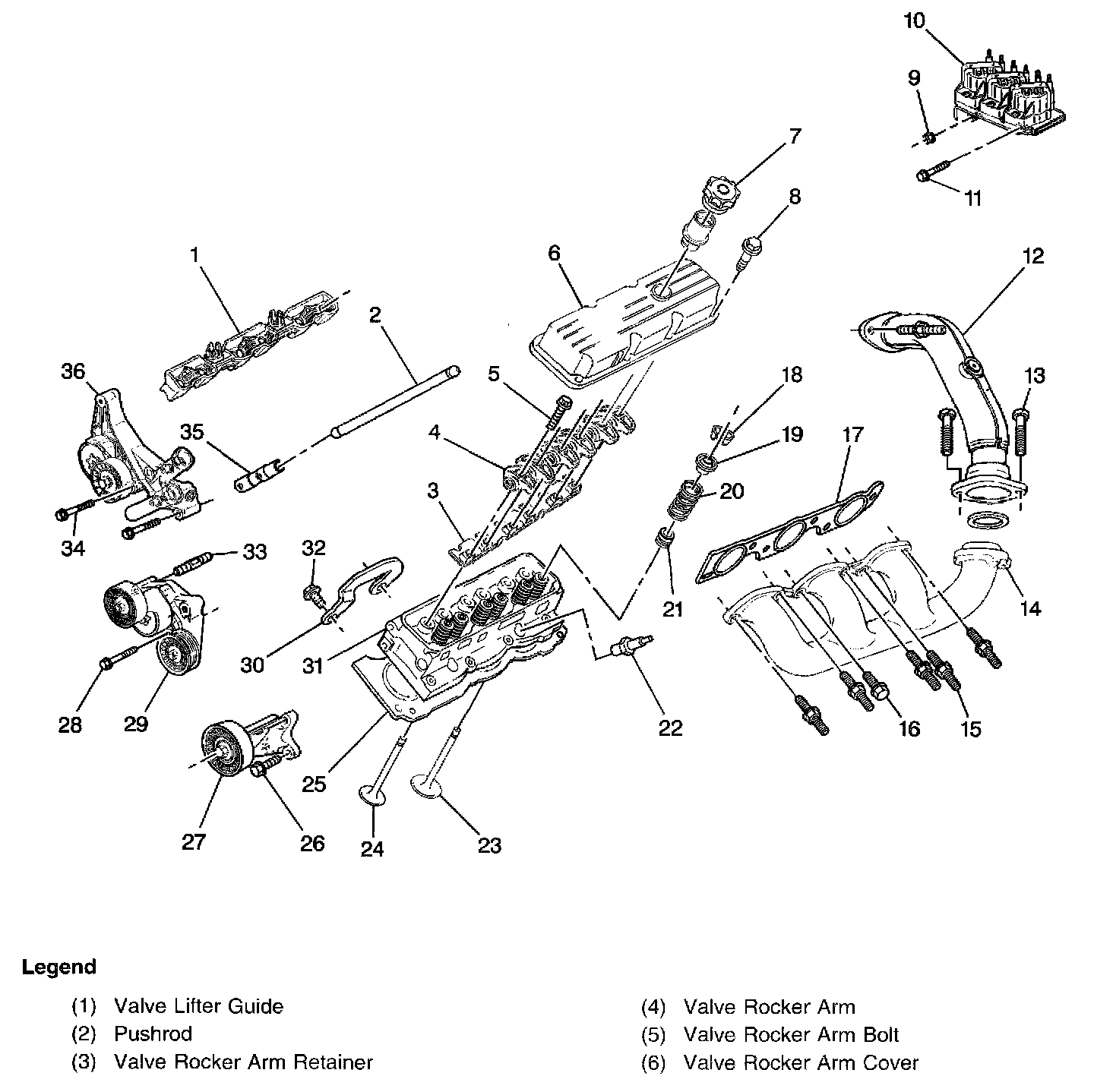

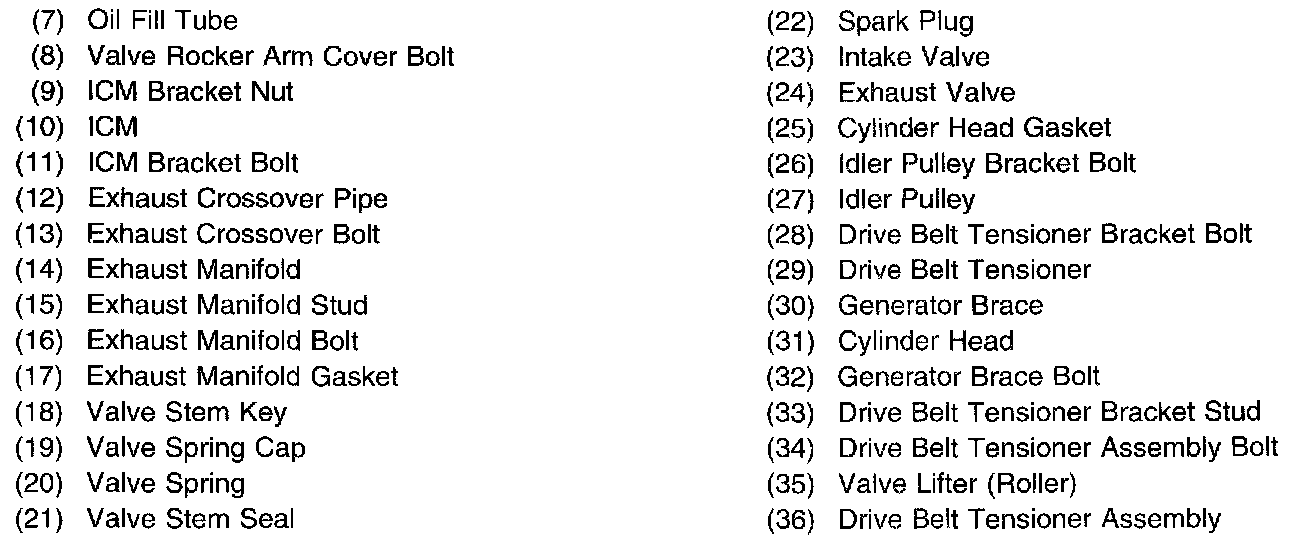

Cylinder Head and Components





Part 1 of 2





Part 2 of 2
