Home >> Buick >> 2002 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Relays >> IGN Main Relay

IGN Main Relay

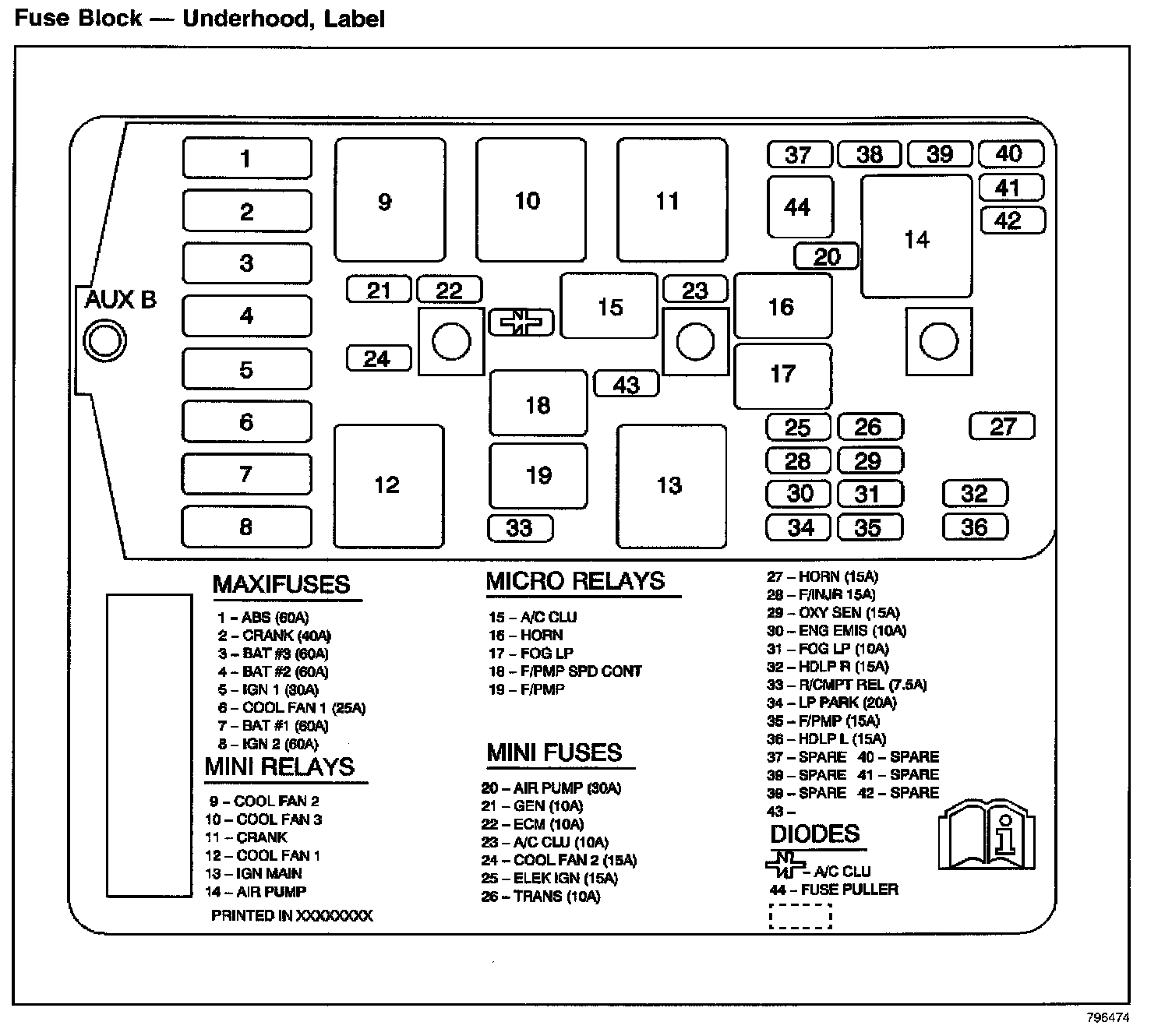

Fuse Block - Underhood, Label:
