61 31 208 Removing and installing/replacing switch for lumbar support

Necessary preliminary tasks:

• Remove OUTER COVER on front seat.

Disconnect plug connection (3).

Unlock latch mechanisms (1).

Remove switch for lumbar support (2) in direction of arrow.

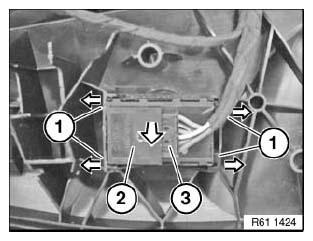

Fig 1: Removing Switch For Lumbar Support

Courtesy of BMW OF NORTH AMERICA, INC.
