MOBILE LIFTING TABLE
TECHNICAL SERVICE BULLETIN
| BMW: | All Models |
| GROUP: | Tools and Equipment |
This Service Information bulletin supersedes SI B04 02 11 dated November 2014.
SUBJECT
Mobile Lifting Table
SITUATION
Distribution of the following Mobile Lifting Table is complete. Additional tables may be ordered through the Regional Distribution Centers (RDC). Mobile Lifting Table warranty and service information has been added to this Service Information.
Mobile Lifting Table
Order P/N 81 22 2 184 136
The mobile lifting table (MHT) was developed to aid in the removal of engines due to the decreasing room in engine compartments. The MHT allows the complete removal of the front axle support, including the engine and transmission. It is removed from the bottom for ease and to protect the vehicle body from damage. The table top has a 2-part design so that the transmission can be separated from the engine without the need of an engine crane.
The included fixture set has been designed for use on all BMW vehicles. Refer below for a listing of included fixtures.
This fixture set may be ordered as a complete set (only) from the RDC under part number 81 22 2 305 379. Refer to ATLAS for pricing.
TECHNICAL DATA - MHT
| Load Capacity | 2645 lbs. |
| Lift Stroke | 51" |
| Drive | Hydraulic foot pump |
| Weight | 1830 lbs. |
| Table top | 2 part floating |
| Table top L x W | 69" x 31" |
| Table top inclination | 5 degrees in X and Y directions, mechanical tilt adjustment |
| Wheel diameter @ drawbar | 8" |
| Ground clearance | 1.18" |
| Lowering time (load) | 19 seconds |
| Hydraulic operating pressure | 3625 PSI |
| Oil capacity | 2.1 Qt |

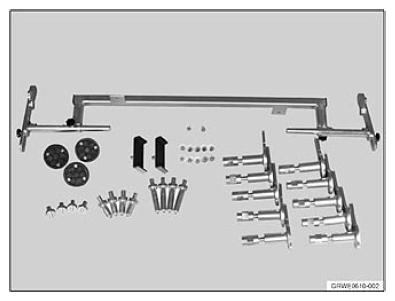

FIXTURE SET
| Fixtures -height adjustment | 10 pieces |
| Adapter 4 pieces | 4.5" |
| Adapter 4 pieces | 2.6" |
| Adapter 4 pieces | .59" |
| Coupling fork | 2 pieces |
| Coupling plate | 3 pieces |
| Wheel hub fixture | Adjustable length and height |
WARRANTY AND SERVICE
All inquires for warranty and service must be directed to:
- ITS International, Inc.
- 5413 C Coyote Canyon Way
- Morrison, CO 80465
- 303-697-4555 Office
- 303-697-4666 Fax
- 720-530-5301 Cell
Email: bernd@its-international.com or bernd.its.international@gmail.com
