O-Ring Removal Tool (04 33 09)

Publication date: 2009-10-26
Reference number: 04 33 09

O-RING REMOVAL TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 33 09, Date of Issue: October 26, 2009

BMW:	All
GROUP:	Tools and Equipment

SUBJECT

O-ring Removal Tool

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

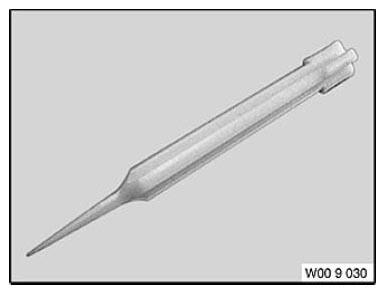

Fig 1: O-Ring Removal Tool

O-ring Removal Tool

Order P/N 83 30 0 496 714

Cartool P/N 009 030

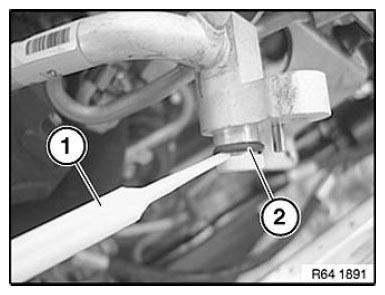

Fig 2: Removing O-Ring From Air Conditioning Couplings

This tool must be used when removing any O-ring from air conditioning couplings. This tool protects the sealing surface and prevents damage to the groove, which will cause leaks.
