New Engine Support Part Numbers (04 13 09)

NEW ENGINE SUPPORT PART NUMBERS

TECHNICAL SERVICE BULLETIN

SUBJECT

New Engine Support Part Numbers

INFORMATION

Due to a lack of additional part numbers, engine support Part Number (P/N) 000 200 (83 30 0 490 075) and all of its associated adapters have been renumbered. Refer to the table below for the P/N conversions and the repair manual(s) for vehicle applications. Tools on this Service Information will not be distributed via the Automatic Tool Shipment program. The tools may be purchased from the Regional Distribution Center. Some tools may require a lead time for delivery.

Old Cartool P/N	New Cartool P/N	New Order Number
000 200	N/A	N/A
N/A	006 000	83 30 0 496 413
000 201	006 001	83 30 0 496 414
000 202	006 002	83 30 0 496 415
000 203	006 003	83 30 0 496 416
000 204	006 004	83 30 0 496 417
000 205	006 005	83 30 0 496 418
000 209	006 006	83 30 0 496 419
000 206	006 010	83 30 0 496 420
000 207	006 020	83 30 0 496 421
000 208	006 030	83 30 0 496 422
N/A	006 031	83 30 0 496 423
N/A	006 032	83 30 0 496 424
N/A	006 033	83 30 0 496 425
N/A	006 040	83 30 0 496 426
000 451	006 041	83 30 0 496 427
000 452	006 042	83 30 0 496 428
N/A	006 043	83 30 0 496 429

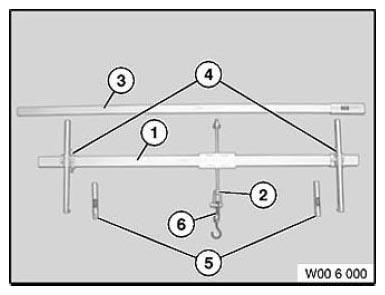

Support Fixture

Order P/N 83 30 0 496 413

Cartool 006 000

This fixture is comprised of the following P/Ns.

1. 006 001 beam
2. 006 002 threaded rod with nut
3. 006 003 beam extension
4. 006 004 brace
5. 006 005 brace extension
6. 006 006 chain with hook

Support Feet (set)

Order P/N 83 30 0 496 420

Cartool 006 010

Support Feet (set)

Order P/N 83 30 0 496 421

Cartool 006 020

Support Feet (set)

Order P/N 83 30 0 496 422

Cartool 006 030

1. 006 031 connection point
2. 006 032 Profile beam
3. 006 033 supports

Support Feet (set)

Order P/N 83 30 0 496 426

Cartool 006 040

1. 006 041 Profile beam
2. 006 042 supports
3. 006 043 short supports
