Front Peripheral Camera -R243-, Removing And Installing: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .

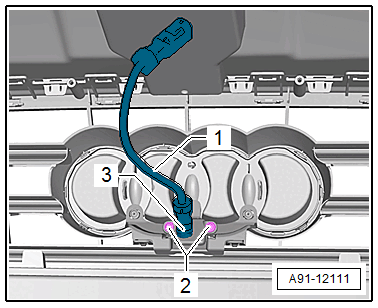

-- Remove the screws -2- on the retaining plate for the Front Peripheral Camera -R243- -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Front Peripheral Camera -R243- -3- with the retaining plate from the front bumper cover.

-- Release and disconnect the wire -1- from the Front Peripheral Camera -R243- -3-.
