Special Tools

Special Tools And Workshop Equipment Required

• Torque Wrench 1331 5-50Nm: VAG1331

  Courtesy of AUDI OF AMERICA, LLC

• Wiring Harness Repair Set: VAS1978A

  Courtesy of AUDI OF AMERICA, LLC

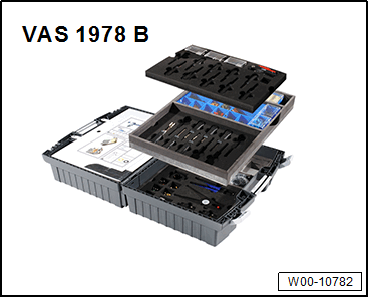

• Wiring Harness Repair Set: VAS1978B

  Courtesy of AUDI OF AMERICA, LLC

• Adjust the sliding stop in the Wiring Harness Repair Set - Wire Strippers: VAS1978/3  pliers jaws to 12 to 14 mm for the wire to be stripped.

  Courtesy of AUDI OF AMERICA, LLC

• To press the crimp connector, use the Wiring Harness Repair - Crimping Plier - Base Tool: VAS1978/1-2  with Wiring Harness Repair - Crimping Head -.35-2.5mm: VAS1978/1-1  .

  Courtesy of AUDI OF AMERICA, LLC

• Wiring Harness Repair Set - Hot Air Blower: VAS1978/14A  from the Wiring Harness Repair Set: VAS1978B

  Courtesy of AUDI OF AMERICA, LLC

• Wiring Harness Repair - Blower - Shrink Element: VAS1978/15A  from the Wiring Harness Repair Set: VAS1978B
• Wiring Harness Repair Set VAS631 003: VAS631003
• Release Tool Set: VAS1978/35

  Courtesy of AUDI OF AMERICA, LLC

• Fiber Optic Repair Set: VAS6223B

  Courtesy of AUDI OF AMERICA, LLC

• Hose Cutting Pliers: VAS6228

  Courtesy of AUDI OF AMERICA, LLC

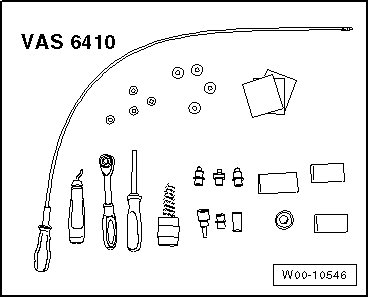

• Contact Surface Cleaning Set: VAS6410

  Courtesy of AUDI OF AMERICA, LLC

• -1- Adapter wire, for connection to radio; length: approximately 30 cm

  Courtesy of AUDI OF AMERICA, LLC

• -2- Connecting wire, available in various lengths
• -3- Adapter wire, for connection to antenna; length: approximately 30 cm
• Contact Surface Cleaning Set: VAS6410
• Aerial Cable Repair Set: VAS6720
• Wiring Harness Repair - Blower - Shrink Element: VAS1978/15A  from the Wiring Harness Repair Set: VAS1978B
• Wiring Harness Repair Set: VAS631001
