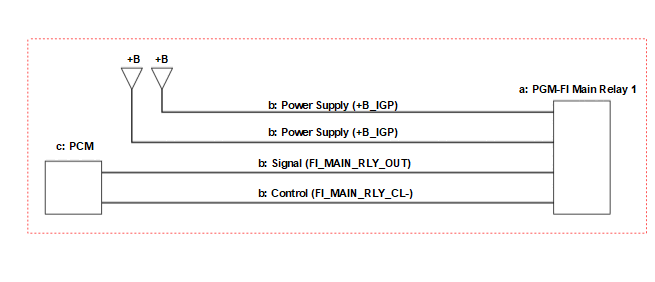

Inspection Outline
- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
| Inspection Items | Work Items | |
|---|---|---|
| a | PGM-FI Main Relay 1 | Do the PGM-FI Main Relay 1 Test |
| - | Components connected to FI_MAIN_RLY_OUT circuit | Components Connected to FI_MAIN_RLY_OUT Circuit Inspection |
| b | External Circuit | +B_IGP Circuit Inspection |
| FI_MAIN_RLY_OUT, FI_MAIN_RLY_CL- Circuit Inspection | ||
| c | PCM | PCM Inspection |
