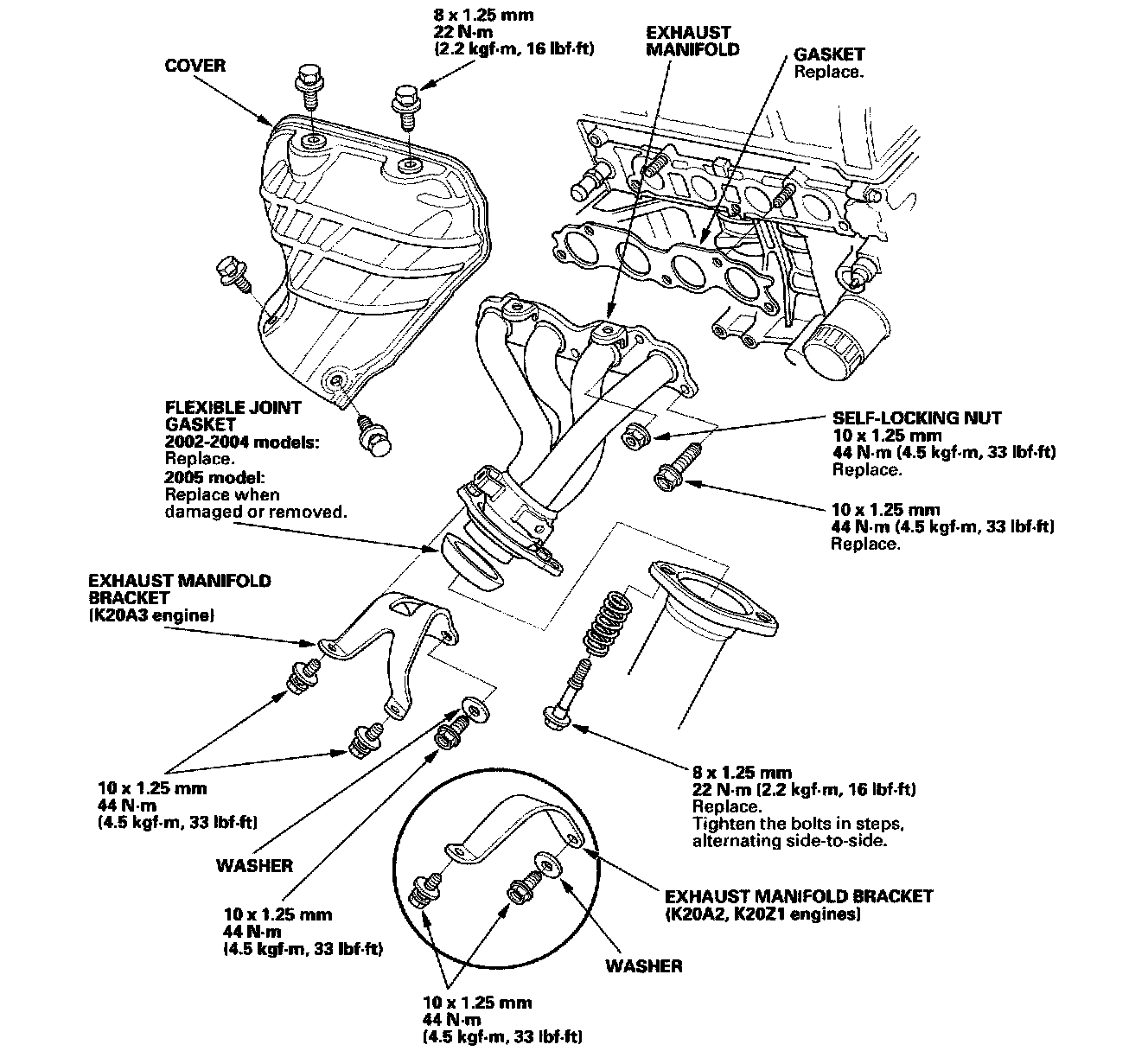

Exhaust Manifold

Exhaust Manifold





Install the exhaust manifold and tighten the bolts/nuts in a crisscross pattern in two or three steps, beginning with the inner bolt.
