Electronic Brake Control Module
Electronic Brake Control Module
VSA
Control Unit

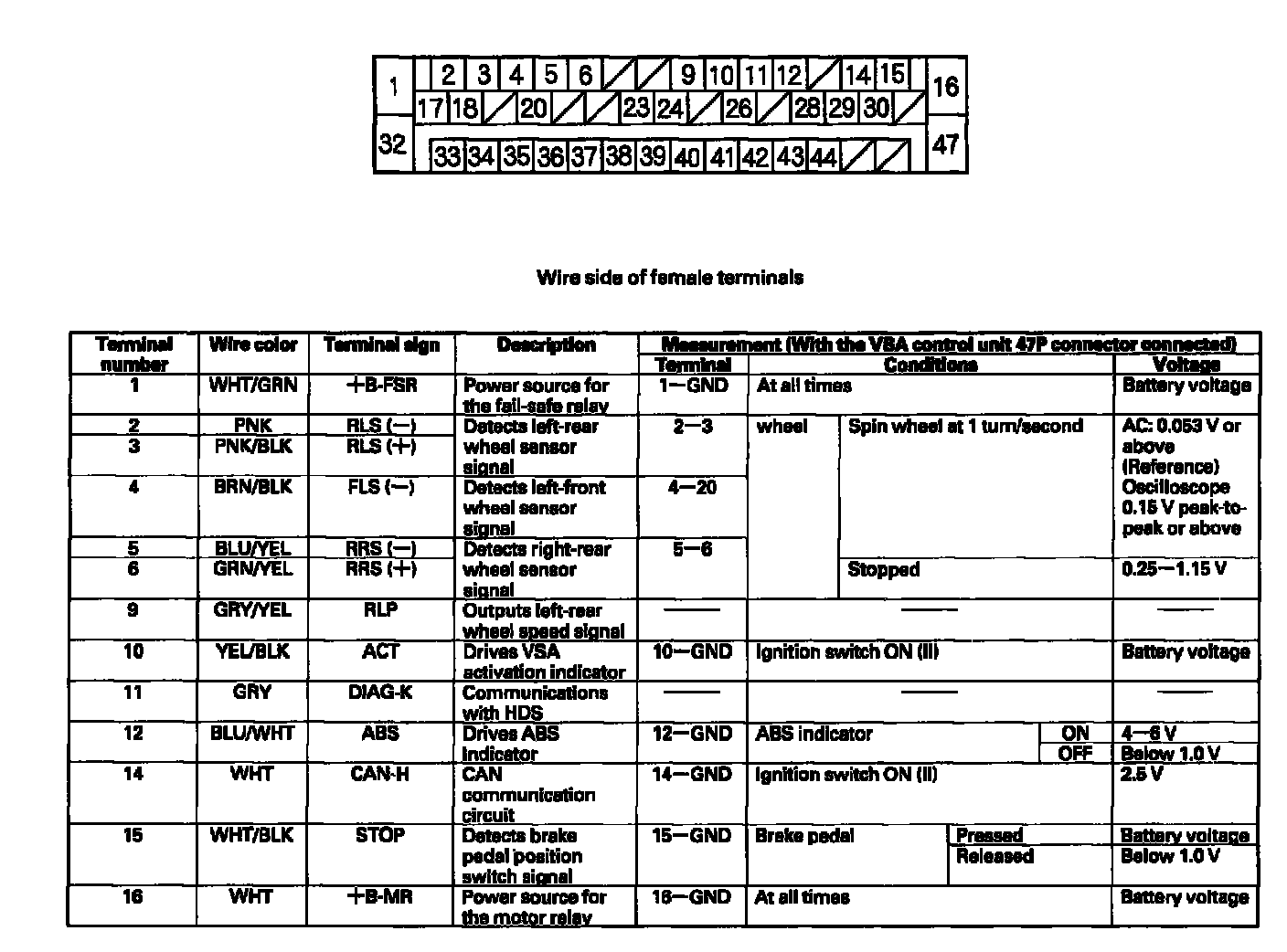

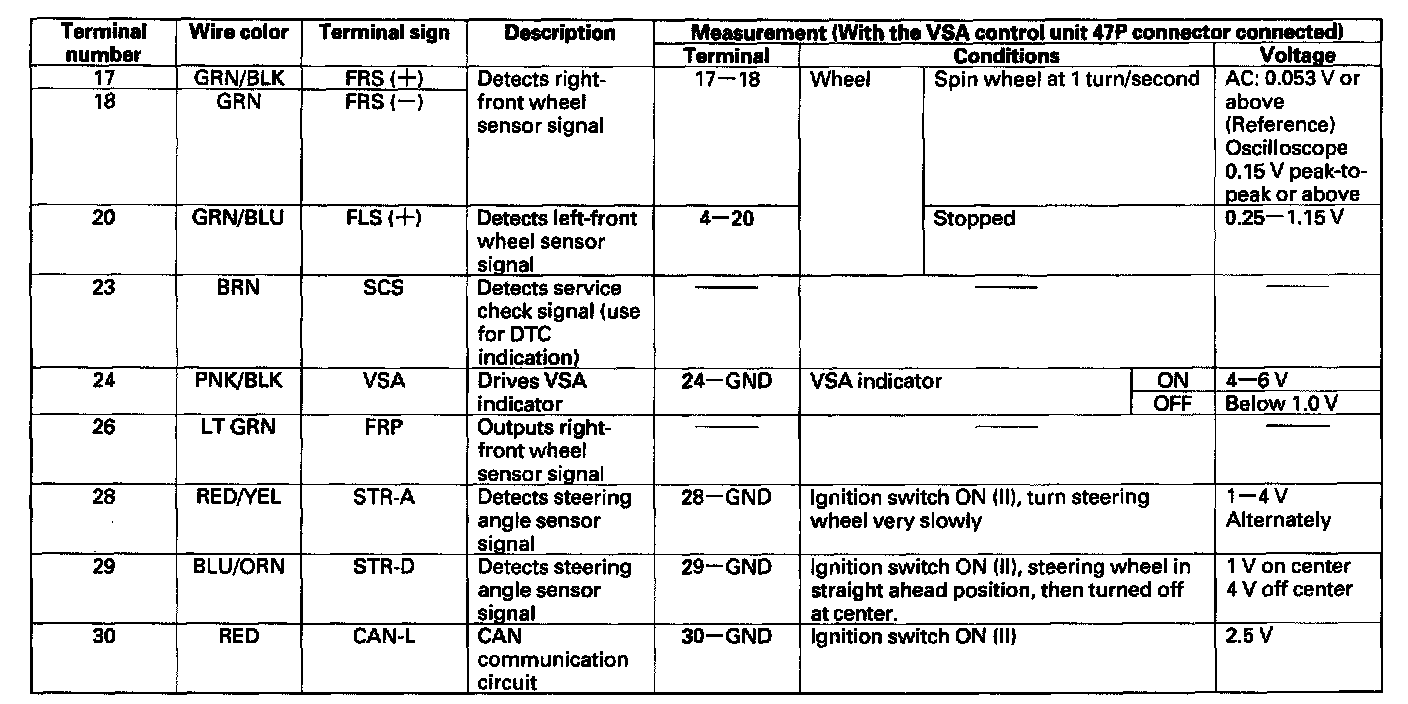

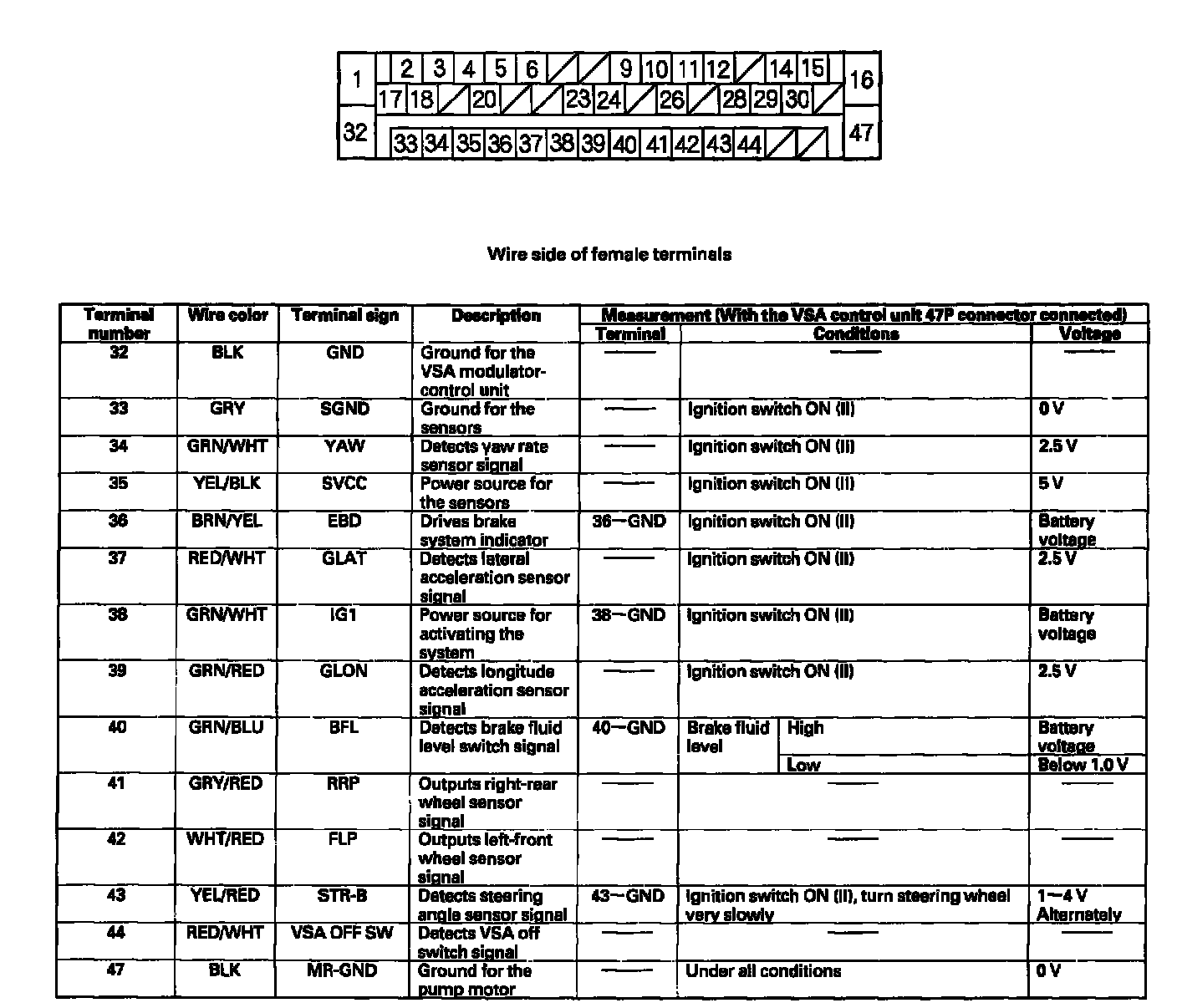

Inputs and Outputs for 47P Connector
