Code Description

1. DTC 24

   Right-Front TCS Normally Open Solenoid.
2. DTC 25

   Right-Front TCS Normally Closed Solenoid.
3. DTC 26

   Left-Front TCS Normally Open Solenoid.
4. DTC 27

   Left-Front TCS Normally Closed Solenoid.

For DTC testing chart, see Fig 1 , Fig 2 and Fig 3 .

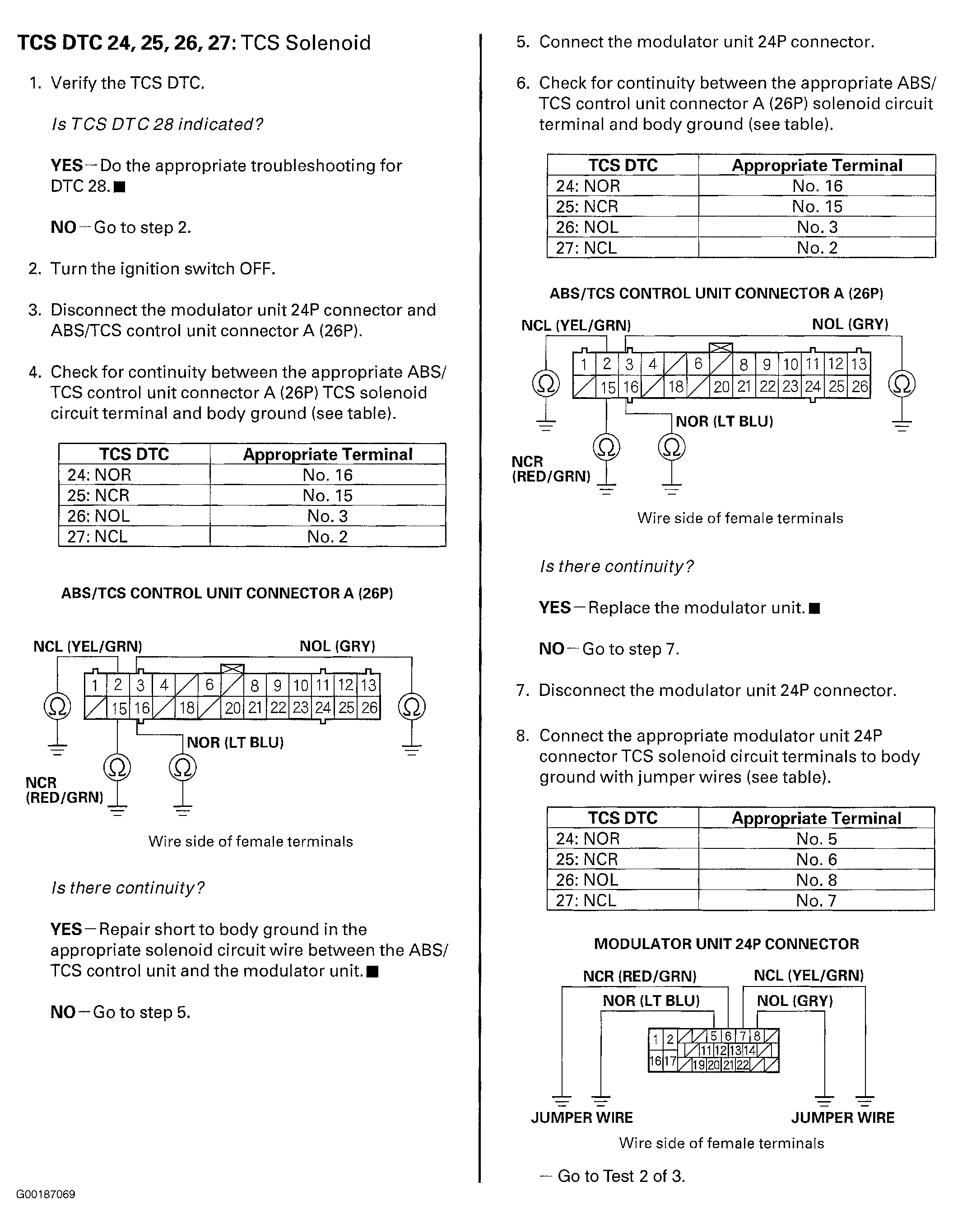

Fig 1: DTCs 24, 25, 26 & 27: TCS Solenoid Testing Chart (1 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

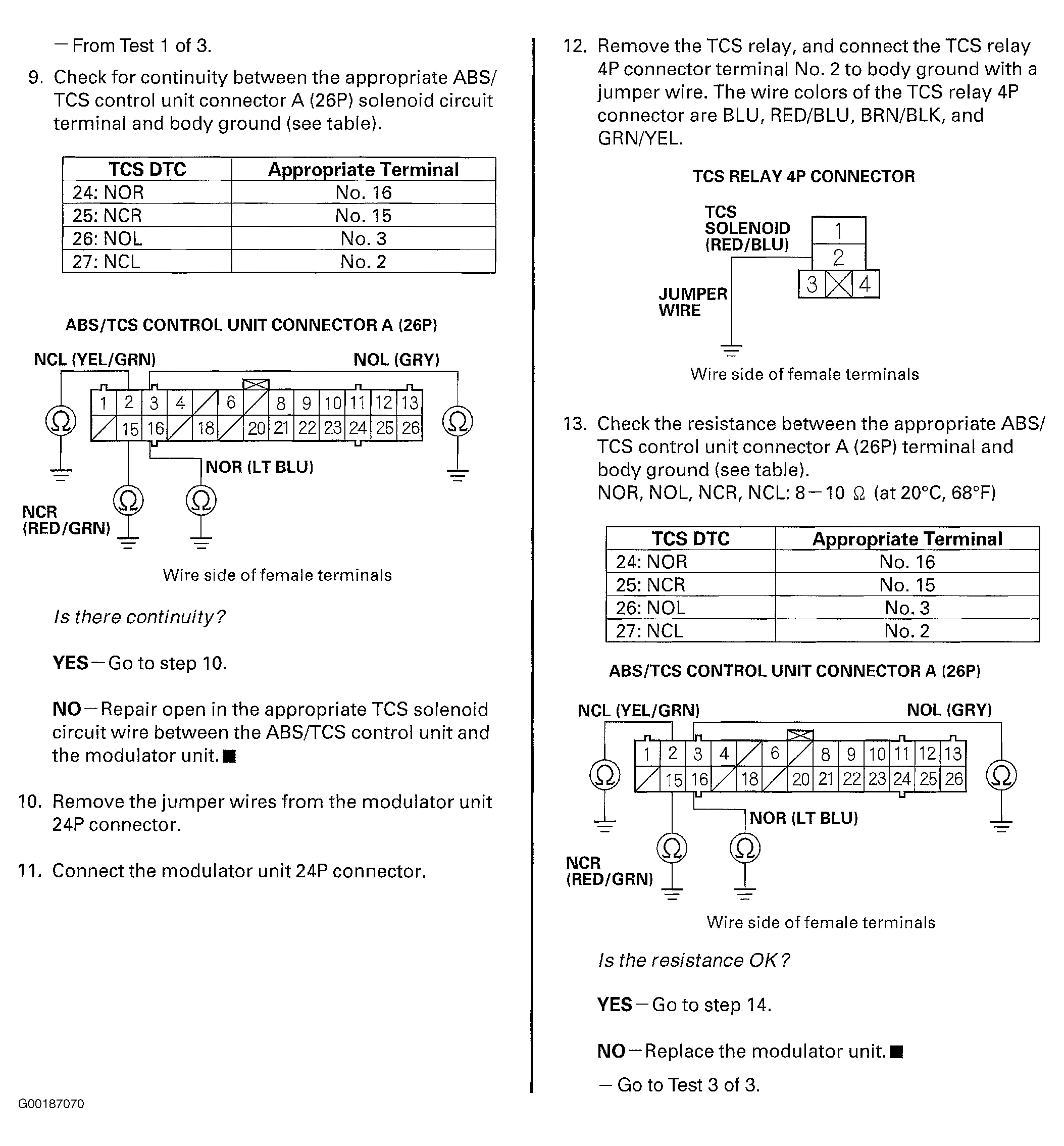

Fig 2: DTCs 24, 25, 26 & 27: TCS Solenoid Testing Chart (2 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

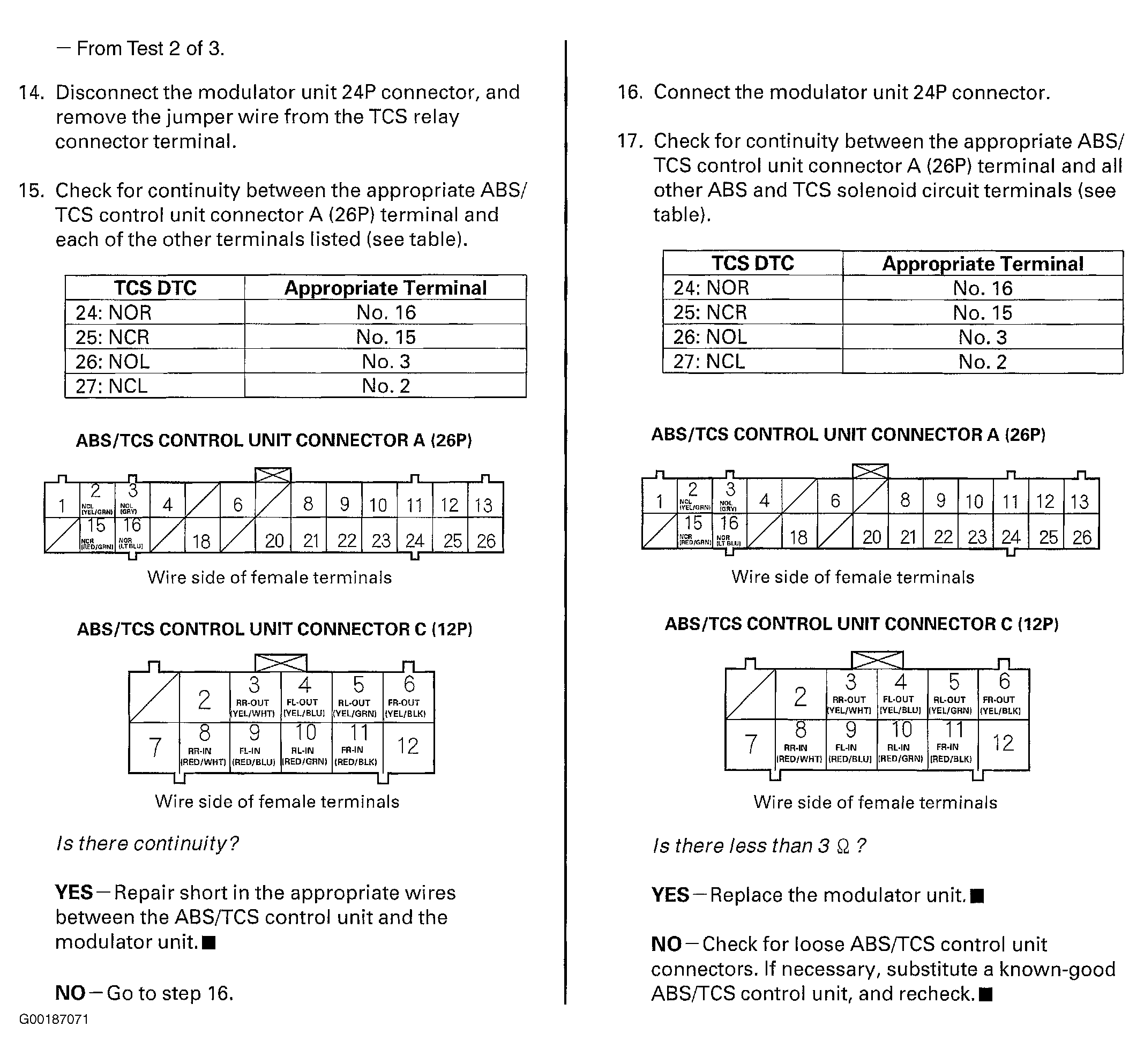

Fig 3: DTCs 24, 25, 26 & 27: TCS Solenoid Testing Chart (3 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
